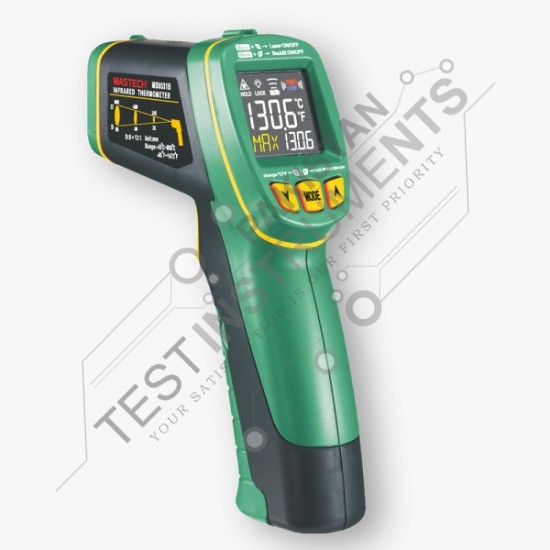

MS6531B Mastech
Overview:
- Battery: 9V Battery
- Weight: 223g
- Dimensions: 176x132x49mm
- Safety rating: CE(EMC) ETL FDA RoHS
- The default temperature: We provide two versions, Celsius temperature(°C) and Fahrenheit temperature(°F)
Features:
Range: IR:-60~500°C
/ -76~932°F
Accuracy:
IR: -60~0°C / -76~32°F:+-4°C/7.2°F
IR: 0~400°C / 32~752°F:+-1.5%,+-2°C/3.6°F
IR: 400~800°C / 752~1472°F:+-2%,+-2°C/3.6°F
TK: -40~1080°C / -40~1976°F:+-1.5%,+-3°C/5.4°F
IR: -60~0°C / -76~32°F:+-4°C/7.2°F
IR: 0~400°C / 32~752°F:+-1.5%,+-2°C/3.6°F
IR: 400~800°C / 752~1472°F:+-2%,+-2°C/3.6°F
TK: -40~1080°C / -40~1976°F:+-1.5%,+-3°C/5.4°F
IR: -60~0°C / -76~32°F:+-4°C/7.2°F
IR: 0~400°C / 32~752°F:+-1.5%,+-2°C/3.6°F
IR: 400~800°C / 752~1472°F:+-2%,+-2°C/3.6°F
TK: -40~1080°C / -40~1976°F:+-1.5%,+-3°C/5.4°F
IR: -60~0°C / -76~32°F:+-4°C/7.2°F
IR: 0~400°C / 32~752°F:+-1.5%,+-2°C/3.6°F
IR: 400~800°C / 752~1472°F:+-2%,+-2°C/3.6°F
TK: -40~1080°C / -40~1976°F:+-1.5%,+-3°C/5.4°F
D:S: 12:1
Emissivity: Adjustable:0.10~1.0
Resolution: 0.1°C(0.1°F)<199.9, 1°C(1°F)>199.9
Response Time: <500ms
Spectral Response: 8-14 um
Low/High Alarm: Low / High
Polarity Display: Automatic (no indication for positive), " -
" indicates negative
Laser Pointers: Output: <1mW, 630~670 nm,class 2 (II) laser
Auto Power off: IRT will turn off after 30s of non-use
Operating TEMP: 0°C~50°C / 32°F~122°F
Storage TEMP: -20°C~60°C / -4°F~140°F
Relative Humidity: Operating: 10~90% RH, Storage: <80% RH
Specification |
Range |
Accuracy |
IRT Temperature |
-40℃~800℃ |
+-(1.5%+2) |
-40℉~1472℉ |
+-(1.5%+4) |
|
Resolution |
|
0.1℃ / 0.2℉ |
Repeatability |
|
+-0.1℃ |
Emissivity |
|
0.10~1.00 |
Optical Resolution |
|
12:1 |
