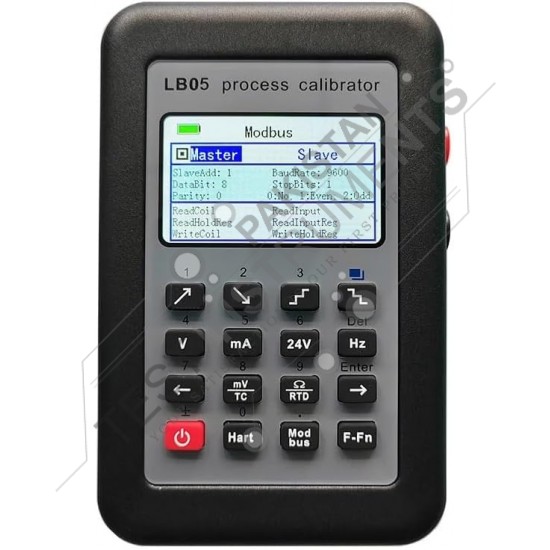

New LB05 Process Calibration Accuracy Frequency RTD PT100
Thermocouple MV MA 0-10V 4-20MA Signal Generator Modbus Signal
New version upgrade version lb05 calibration process for tc
pt100pt1000c50 ohm signal generator with modbus master slave functions
Lb05 has modbus master and modbus slave (*no hart functions)
New version: type c port, the battery bar on the screen
is black color not green. Press [f-fn] button, it is color screen.
Main features:
Has modbus master and modbus slave functions (no HART functions). Pocket
portable size: 120x76 x30mm, put it in your pocket, save energy, save costs,
easy to carry. High accuracy 0.025% + 1/2 digits, high reliability and
stability. It has a full-function operation mode, the user can input any value
through digit buttons, the calibration can output a signal directly. 2200mah
rechargeable battery inside, very suitable and convenient for use in indoor
applications or outdoor industrial site. Signal output and
simulation: frequency 0-10khz , 4-20ma source or passive signal,
0-11v, 0-110mv, 20-400Ω, regular r, e, s, k, j, b, t, n type thermocouple,
pt100, pt1000, cu50, 24 outputs, etc. Measurement ranges: frequency
0-10khz, 0-30v, 0-150mv, 0-999.9Ω, standard r, e, s, k, j, b, t, n type
thermocouple, pt100, cu50, 24v, 0-24ma, etc. High-resolution color LCD display,
has back light for different lighting conditions, large screen and clear
screen. Fast response, no delay in signal source simulation and signal testing
or measurement.There is a battery charging and status bar. The user can check
the battery status easily. Can be used as a signal generator, frequency
calibration, multi-purpose process calibration and digital multimeter. There is
a description in hz, v, mv, ma, rtd, tc, step, and Ω, it allows the user to
operate it easily. Frequency signal, dc voltage, mv small signal, resistance
signal, dc current, thermocouple, RTD thermal resistance signal and
measurement, it is equivalent to process calibration and digital multimeter. Ad,
da, reference voltage, op circuits are used to ensure all high precision, high
performance and high stability Using 4 units of PPTC and fast fuse to protect
the device from being damaged by high voltage.
Package contents:
1 unit x New Lb05 Portable Precision Process Calibrator ( * Has
Modbus, No HART Function )
1 set x High Safety Alligator Test Clips Set
1 unit xx high quality 2a USB recharging cable
1 unit x High quality meter bag
1 set x Professional easy-to-understand user manual
