SEW 7016 IN

DESCRIPTION:

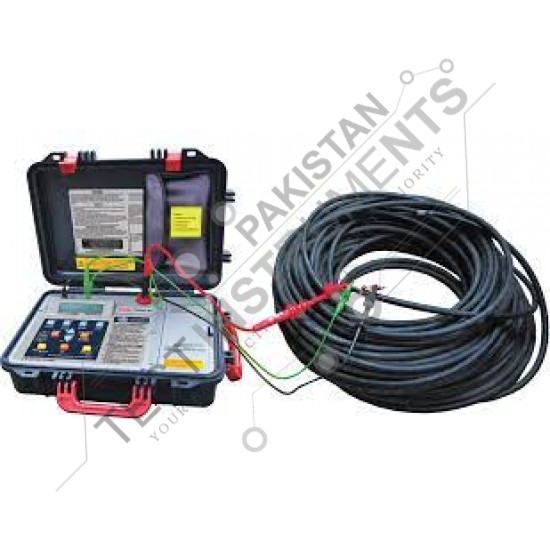

The SEW 7016 IN is a high voltage (up to 15Kv) insulation tester used for testing the insulation resistance of cables, motors, generators, transformers, insulators, high-pressure switches, wiring installation.

SEW 7016 IN High Voltage Insulation Tester Features:

Test Insulation resistance up to 30TΩ (30000GΩ).

Short-circuit current up to 5mA

Microprocessor

30 insulation test voltages :

AC/DC voltmeter (600V).

PI (Polarization Index) Indication

DAR (Dielectric Absorption ratio) Indication

Auto-ranging on all insulation ranges

Backlight Display

Bargraph indicates test voltage, rise and decay can be observed

Menu Driven

Visual and audible warning if external voltage is (≥30Vac or ≥30Vdc)

Auto-hold function to freeze the reading

Overload protection

Adjustment for testing time (duration) :1~30 minutes

Auto-off.

Calendar

Optical USB to RS-232 data tansmission

200 measurement results can be saved in the memory and recalled on the display

Safety standard : EN 61010-1 CAT IV 600V, EN 61010-2-030, EN 61326-1

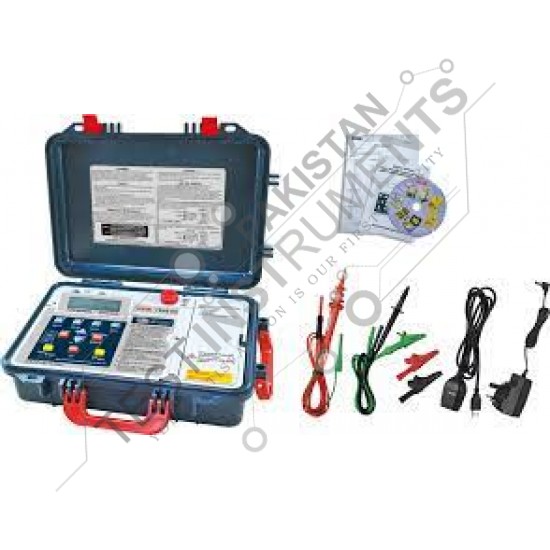

SEW 7016 Standard Accessories:
