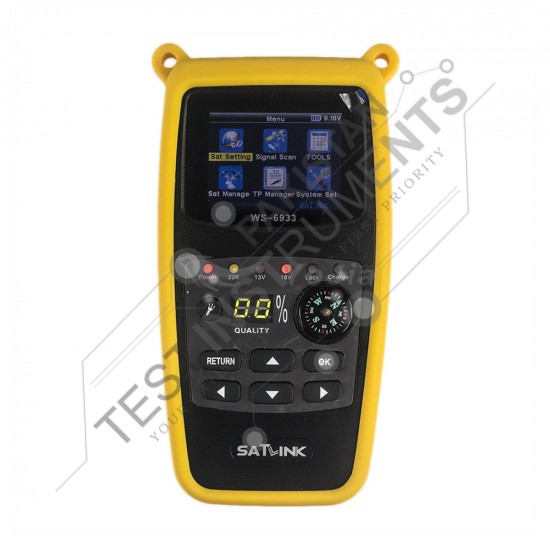

WS6933 SATLINK

Features

2.4 Inch LCD Screen Display
Input Frequency 950~2150MHz
Input Level -65~-25dBm
Input Impedance 75 ohm
LNB Power Supply:18/13V(IMax 300mA)
Digital meter for signal strength and quality
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ,EL
Supports DISEQC 1.0/1.1 ,0/22khz Tone
Beep Integrated
LNB short protect
Support mechanical compass
7.4V/800mAh Li-Ion Battery Included
Software upgrade via USB port
Easy to carry

Specification:

TRANSMISSION STANDARDS: DVB-S/S2
SATELLITE INPUT/DEMODULATION: Connector Type
F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: - 65 to - 25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, IMax 300mA
Demodulation Type: QPSK, 8PSK
Symbol Rate: 2-Rs-45Mband (SCPC/MCPC)
LCD FEATURES: LCD Type
TFT Positive transflective
Number of Dots: 240(RGB)*320
Active area (WxH): 36.72(W) * 48.96(H)MM2
DATA SERVICE PORT
Connector: USB
Data protocol: USB to RS-232
POWER SUPPLY
Li-Ion Battery: 7.4V/800mAh
Adapter: OUTPUT :DC12V/1A, INTUPT :100-240VAC 50/60Hz
Power consumption: Max. 5W

PHYSICAL CHARACTERISTICS

Size (W x D x H): 8x16x4(cm3)
Net Weight: 0.25kg

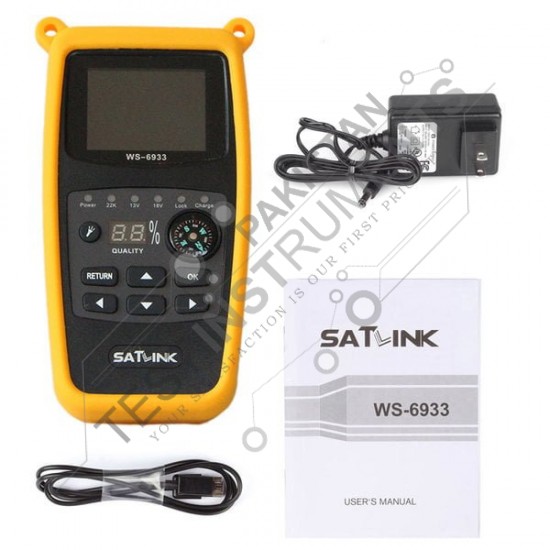

Packing included:
1 x WS-6933 Satellite Finder
1 x silicone case
1 x USB upgrade cable
