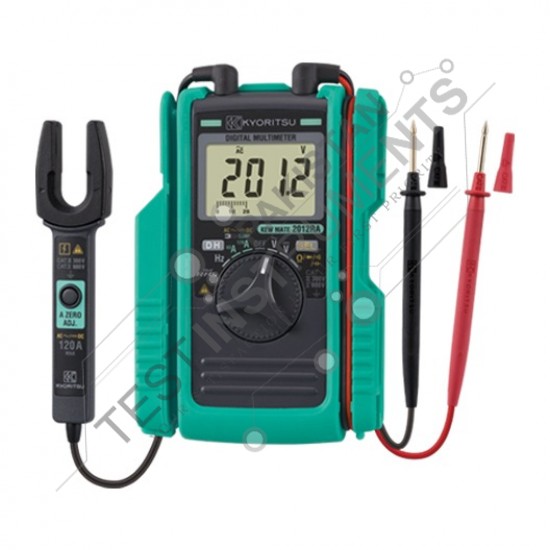

KEW MATE 2012RA KYORITSU Price In Pakistan

DC V

600.0mV/6.000/60.00/600.0V

(Input impedance: Approx. 10MΩ)

±1.0%rdg±3dgt

AC V

6.000/60.00/600.0V

(Input impedance: Approx. 10MΩ)

±1.5%rdg±5dgt (45 to 400Hz)

DC A

60.00/120.0A

±2.0%rdg±8dgt (60A)

±2.0%rdg±5dgt (120A)

AC A

60.00/120.0A

±2.0%rdg±5dgt (45 to 65Hz)

Ω

600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ

±1.0%rdg±5dgt (600Ω/6/60/600kΩ)

±2.0%rdg±5dgt (6MΩ)

±3.0%rdg±5dgt (60MΩ)

Continuity buzzer

Buzzer sounds below 35±25Ω

Diode test

2.000V

±3.0%rdg±5dgt

Open circuit voltage: Approx. 2.7V

Capacitance

400.0nF/4.000/40.00µF

±2.5%rdg±10dgt

Frequency

(AC A) 99.99/400.0Hz

±0.2%rdg±2dgt (100Hz)

±0.1%rdg±1dgt (400Hz)

(AC V) 99.99/999.9Hz/9.999/99.99/300.0kHz

±0.2%rdg±2dgt (100Hz)

±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)

(Input sensitivity Current: more than 6A Voltage: more than 6V [to 10kHz]/more than 20V [10 to 300kHz])

Conductor size

Ø12mm max.

Applicable standards

IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2

IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)

Power source

R03 (AAA)(1.5V) × 2

* Continuous measuring time: DCV: approx. 150hours, ACA: Approx. 25hours (Auto power save: Approx. 15 minutes)

Dimension

128 (L) × 92 (W) × 27 (D) mm

Weight

Approx. 220g (including batteries)

Accessories

R03 (AAA) × 2
Instruction manual
