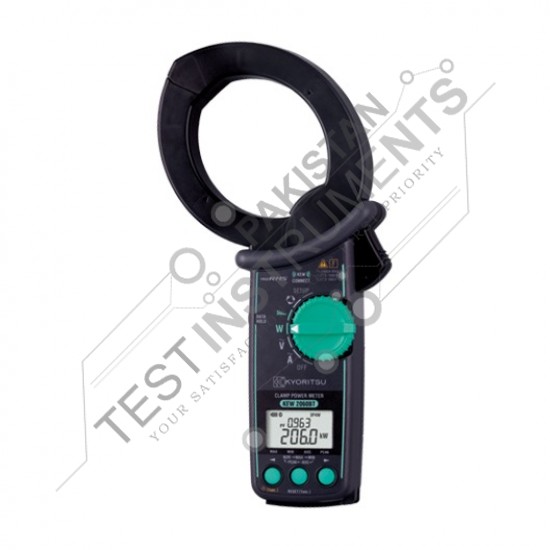

KEW2060BT KYORITSU

Pre-Order

KEW2060BT KYORITSU

Stock: Pre-Order
Model: CLAMP POWER METER

Description

Extremely large jaw with tear drop shape:
ideal solution for busbar and large currents!

Current up to 1000A rms
Voltage up to 1000V rms
Harmonics up to 30th
KEW 2060BT has a newly designed special jaw shape for using at a large busbar Extremely large jaw with tear drop shape can clamp a large busbar with safe
(Conductor size 75mm, Busbar 80mm x 30mm)

Specification

Wiring connections		1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters		Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Power factor(cosθ), Phase angle, Harmonics(THD-R/THD-F), Phase rotation
ACV

	Range	1000V
	Accuracy	±0.7%rdg±3dgt (40.0 to 70.0Hz) ±0.3%rdg±5dgt (70.1Hz to 1KHz)
	Crest factor	1.7 or less
ACA

	Range	40.00/400.0/1000A (3 range auto)
	Accuracy	±1.0％rdg±3dgt (40.0 to 70.0Hz) ±2.0％rdg±5dgt (70.1Hz to 1kHz)
	Crest factor	3 or less on 40.00A/400.0A range, 3 or less 1500A peak on 1000A range
Frequency

	Display Range	40.0 to 999.9Hz
	Accuracy	±0.3％rdg±3dgt
Active power

	Range	40.00/400.0/1000kW
	Accuracy	±1.7%rdg±5dgt (PF1, sine wave, 45 to 65Hz)
Apparent power

	Range	40.00/400.0/1000kVA
	Accuracy	±1dgt against each calculated value Sum: add errors of each channel, 3P3W: ±2dgt, 3P4W:±3dgt
Reactive power

	Range	40.00/400.0/1000kVar
	Accuracy	±1dgt against each calculated value Sum: add errors of each channel, 3P3W: ±2dgt, 3P4W:±3dgt
Power factor

	Display Range	-1.000 to 0.000 to +1.000
	Accuracy	±1dgt against each calculated value Sum: add errors of each channel, 3P3W: ±2dgt, 3P4W:±3dgt
Phase angle (1P2W only)

	Display Range	-180.0 to 0.0 to +179.9
	Accuracy	Within ±3.0°
Harmonics RMS(Content rate)

	Analysis order	1st to 30th order
	Accuracy	±5.0％rdg ± 10dgt (1 to 10th) ±10％rdg ± 10dgt (11 to 20th) ±20％rdg ± 10dgt (21 to 30th)
Total harmonics THD-R/THD-F

	Display Range	0.0% to 100.0%
	Accuracy	±1dgt against the calculated results of each measured value
Phase rotation		ACV 80 to 1100V (45 to 65Hz)
Other functions		MAX/MIN/AVG/PEAK, Data hold, Bluetooth^®, Backlight, Auto power off
General

	Communication interface	Bluetooth^® 5.0
	Power source	LR6 (AA) (1.5V) ×2
	Continuous measuring time	Approx. 58 hours
	Conductor size	φ75 mm max. (busbar of 80mm × 30mm)
	Dimension / Weight	283(L) × 143(W) × 50(D) mm / Approx. 590g (including batteries)
	Applicable standards	IEC 61010-1, IEC 61010-2-032, IEC 61326-1,2-2 ClassB CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
