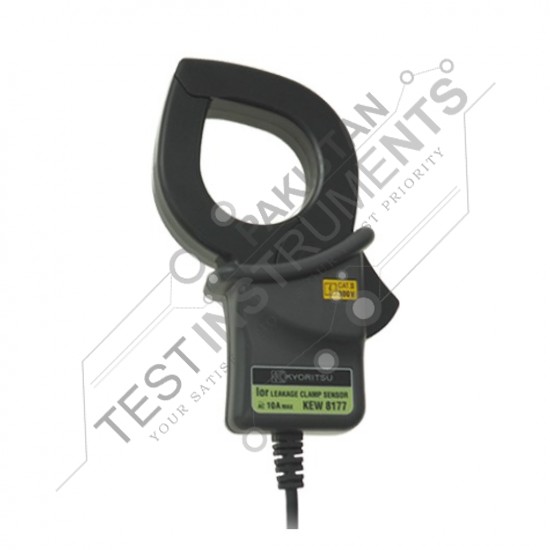

KEW8177 kyoritsu Price in pakistan

Applicable model

5050

Conductor size

Ø40mm

Rated current

10A (rms) AC (14.1Apeak)

Output voltage

500mV AC/10A AC

Accuracy

±1.0%rdg±0.025mV (40 to 70Hz)
±4.0%rdg±0.025mV (30Hz to 5kHz, with inputs of 100mA or more)

Phase shift

within 1.0° (45 to 70Hz while combining with KEW 5050, under the input of 10% or more of KEW 5050 leakage current range)

Cable length

Approx. 3m

Output connector

MINI DIN 6PIN

Output impedance

Approx. 100Ω or less

Applicable standards

IEC 61010-1 , IEC 61010-2-032 CAT Ⅲ 300V Pollution degree 2 , IEC 61326-1

Operating temperature and humidity range

-10 to 50°C , relative humidity 85% or less (no condensation)

Dimension

128(L) × 81(W) × 36(D)mm

Weight

Approx. 280g

Accessories

9095 (Carrying case)
Instruction manual
