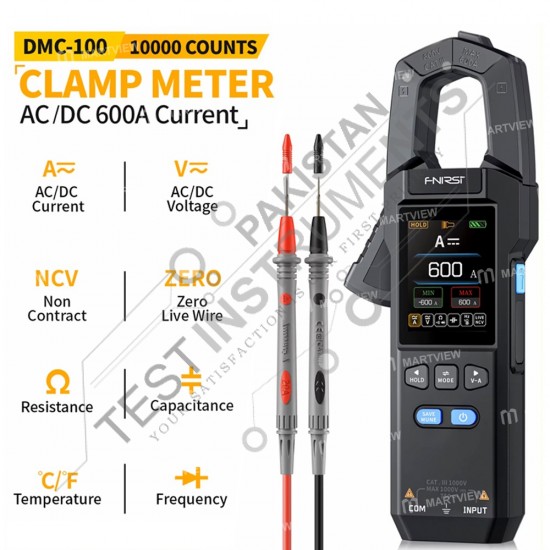

DMC-100 FNIRSI

Specification:

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

Features:

High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.

Wide Measurement Range: Supports up to 750V voltage and 600A current.

High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.

Intuitive Interface: New UI with data curve display for easy reading at a glance.

Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.

NCV Function: Non-contact voltage measurement and zero/fire line identification.

Wide Temperature Range: Measures temperatures from -55°C to 1300°C.

Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.

Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).

Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.

Auto Power-Off: Intelligent automatic shutdown to conserve battery life.

Temperature Unit Switching: Easily switch between temperature units (℃/℉).

Adjustable Brightness: Screen brightness is adjustable for various environments.

Firmware Upgradeable: Supports firmware updates to enhance functionality.

Specifications

Screen

2.0'' TFT color screen

Screen Resolution

240*320 pixels

Battery

3.7V, 1500mAh Lithium Battery

Charging Specification

USB Type-C, 5V/1A

Maximum Jaws Size

25mm

Temperature Unit

℃/℉

DC Voltage

9.999V / 99.99V / 999.9V

AC Voltage

9.999V / 99.99V / 750.0V

DC & AC Current

99.99A / 600.0A

Resistance

99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω

Capacitance

9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF

Frequency

9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz

Temperature

-55~1300℃ / -67~2372℉

Diode Measurement

Support

On-off Test

Support

Non-Contact Voltage Check (NCV)

Support

Zero Fire Wire Check

Support

Measuring Mode

1. General Measurement
2. Waveform Display
3. Power Measurement

Measurement Gear

Manual Adjustment

Torch

Support

Data Zeroing

Support

Maximum/Minimum Value

Support

Waveform Display

Support

Power Calculation

Support

Data Hold

Support

Data Storage and Viewing

Up to 30 groups of data

Language

Chinese / English

Brightness Adjustment

10-speed adjustment

Auto Power Off

OFF / 5min / 15min / 30min

Firmware Upgrade

Support

AC Current

4A / 40A / 600A

Resistance

400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
