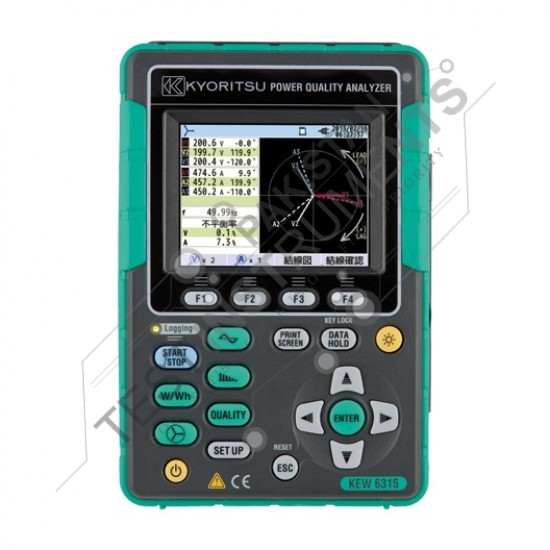

KEW6315 KYORITSU

Pre-Order

KEW6315 KYORITSU

Stock: Pre-Order
Model: POWER QUALITY ANALYZER

Description

Simultaneous Power & Power quality measurements

Simultaneous Power & Power quality measurements
Helpful support functions
Measurement with high accuracy
Remote monitoring on PC and Android device
Various Clamp Current Sensors
Energy consumption check on site
IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

Specification

Power Quality Analyzer
Wiring connections		1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters		Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker
Voltage (RMS)
	Range	600.0 / 1000V
	Accuracy	600.0V Range : (sine wave 40 to 70Hz) 　10% to 150% against 100V or more of nominal V : Nominal V±0.5% 　Out of above range : ±0.2%rdg±0.2%f.s. 1000V Range : ±0.2%rdg±0.2%f.s.(sine wave 40 to 70Hz)
	Allowable input	1 to 120% of each range (rms). 200% of each range (peak)
	Display range	0.15 to 130% of each range
	Crest factor	3 or less
	Sampling speed of Voltage transient	24µs
Current (RMS)
	Range	8128/8135 ( 50A type ) : 5000mA / 50.00A / AUTO 8127 ( 100A type ) : 10.00 / 100.0A / AUTO 8126 ( 200A type ) : 20.00 / 200.0A / AUTO 8125 ( 500A type ) : 50.00 / 500.0A / AUTO 8124/8130 ( 1000A type ) : 100.0 / 1000A / AUTO 8146/8147/8148 ( 10A type ) : 1000mA / 10.00A / AUTO 8133 ( 3000A type ) : 300.0 / 3000A / AUTO
	Accuracy	±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40 to 70Hz)
	Allowable input	1 to 110% of each range (rms). 200% of each range (peak)
	Display range	0.15 to 130% of each range
	Crest factor	3 or less
Active power
	Accuracy	±0.3%rdg±0.2%f.s. + accuracy of clamp sensor (power factor 1, sine wave, 40 to 70Hz)
	Influence of power factor	±1.0%rdg (reading at power factor 0.5 against power factor 1)
Frequency meter range		40 to 70Hz
Power supply (AC Line)		AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery)		Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF)
Internal memory		FLASH memory (4MB)
PC card interface		SD card (2GB)
Communication interface		USB, Bluetooth® 5.0
Display		320 × 240 (RGB) Pixel, 3.5inch color TFT display
Display update period		1 sec
Applicable standards		IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V Pollution degree 2, IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7
Temperature and humidity range		23±5ºC, less than 85% RH (without condensation)
Operating temperature and humidity range		0 to +45ºC, less than 85% RH (without condensation)
Storage temperature and humidity range		-20 to +60ºC, less than 85% RH (without condensation)
Power supply (AC Line)		AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery)		Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF)
Dimension		175(L) × 120(W) × 68(D) mm
Weight		Approx. 900g
Accessories		(Voltage test lead set) (Power cord[EU]) or (Power cord[UK]) (USB cable) (SD card [2GB]) (Carrying case) Input terminal plate × 6, Quick manual, LR6× 6
