KEW4102A KYORITSU Price In Pakistan

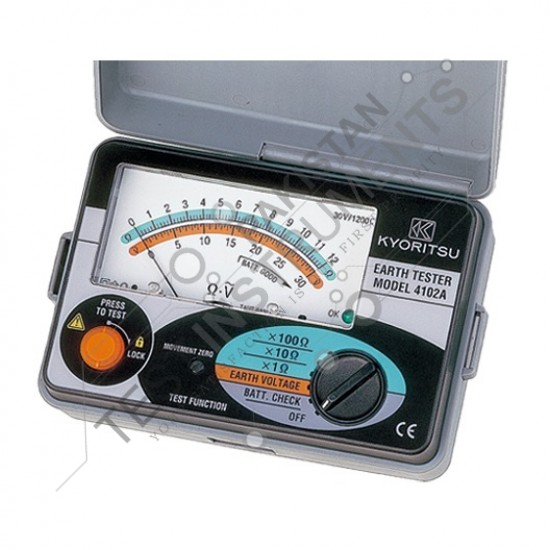

Name: KEW4102A KYORITSU
Brand: KYORITSU
Availability: OutOfStock

Pre-Order

Tags: KEW4102A KYORITSU , KEW4102A KYORITSU Price In pakistan 2025 , KEW4102A KYORITSU Dealer Priice , KEW4102A KYORITSU Distributor Nearby Me ,

Qty

Buy Now KEW4102A KYORITSU At Best Price In Pakistan 2025

Soft Case Model
3-Pole and 2-Pole Earth Resistance
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes
Dust and drip proof (designed to IEC 60529 IP54)
Earth resistance value can be read directly from the scale
Designed to meet IEC 61010-1 safety standard
Capable of measuring earth voltage
Small and lightweight. Shock resistant new case material
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test
Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by “OK” lamp
Lead wire connection to C and E terminals is good when “OK” lamp is illuminated

Earth resistance measurement		× 1ΩRange	× 10Ω	× 100Ω
	Measuring range	0 to 12Ω	0 to 120Ω	0 to 1200Ω
	Accuracy	±3% of full scale
Earth voltage measurement
	Measuring range	0 to 30 V AC (50/60Hz)
	Accuracy	±3% of full scale
Overload protection		Earth resistance : 276V AC/DC (10 seconds) Earth voltage : 276V AC/DC (10 seconds)
Applicable standards		IEC 61010-1 CAT Ⅲ300 V Pollution degree 2 IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54)
Power source		R6(AA)(1.5V) × 6
Dimension		105(L) × 158(W) × 70(D) mm (including case lid)
Weight		Approx. 600g (including batteries and case lid)
Accessories		(Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) (Simplified measurement probe) (Auxiliary earth spikes[2 spikes/1set]) (shoulder strap) (Carrying case) R6(AA) × 6, Instruction manual
Optional accessories		(Precision measurement cord set) (Adapter for measurement terminal) (Carrying case [Hard])
