KEW4202 KYORITSU

Name: KEW4202 KYORITSU
Brand: KYORITSU
Price: 308000.00 PKR
Availability: InStock

New

Tags: KEW4202 KYORITSU

KEW4202 KYORITSU

Based on 0 reviews. - Write a review

308,000

No Shipping Charges

Qty

Add to Cart

Ask for price

Add to Wish List Compare this Product

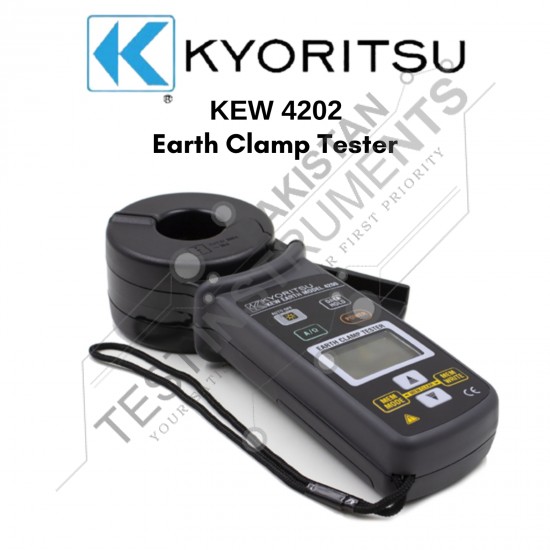

Kyoritsu 4202

This earth clamp tester is compatible with Android devices using Bluetooth communication.

Features

Real time measurements can be transferred, shown and saved on Android device (up to 100 measurements)

Saved data includes measurement, GPS location and date & time

Easy to check on map "When" and "Where" the measurement was made

Comparator function on Android device informs when the measured value is lower/higher than the preset value

The earth resistance from 0.05 to 1200 Ω can be measured without the auxiliary earth spikes in multi-earthing systems

True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks

Kyoritsu 4202 Specifications

Earth Resistance Auto Range
Ranges	20.00Ω 200.00Ω 1500Ω
Accuracy	0.00 to 20.99Ω: ±1.5% ±0.05Ω 16.0 to 99.9Ω: ±2% ±0.5Ω 100.0 to 209.9Ω: ±3% ±2Ω 160 to 399Ω: ±5% ±5Ω 400 to 599Ω: ±10% ±10Ω
AC Current Auto Range (50Hz/60Hz)
Ranges	100.0mA 1000mA 10.00A 30.0A
Accuracy	0.0 to 104.9mA: ±2% ±0.7mA 80mA to 31.5A: ±2%
Operating Indication
Earth Resistance Function	Constant Voltage Injection
Current Detection	Frequency: Approx. 2400Hz
Dual Integration	AC current Function: Successive Approximation
General Specifications
Response Time	Earth Resistance: Approx. 7 seconds AC Current: Approx. 2 seconds
Current Consumption	Approx. 50mA (max.100mA)
Measurement Time	R6: Approx. 5 hours LR6: Approx. 21 hours
Auto Power-Off	Turns power off about 10 minutes after the last button operation
Conductor Size	Approx. Ø32mm
Power Source	4 x R6 AA Manganese Batteries or 4 x LR6 AA Alkaline Batteries
Dimensions	246 x 120 x 54 mm
Weight	Approx. 780 g (Including Batteries)
