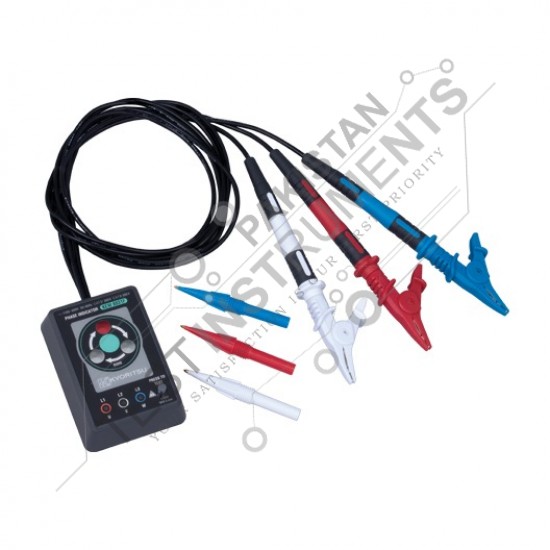

KEW8031F KYORITSU

KEW8031F KYORITSU
Pre-Order
KEW8031F KYORITSU
  • Stock: Pre-Order
  • Model: PHASE INDICATOR

Simple operation and ruggedness.
Check of open phase and phase sequence are possible in one unit.

  • Phase indicator designed to check the presence of open phase and also the phase sequence by rotating disk and lamps
  • Can check a wide range of 3-phase power source from 110V to 600V
    Sealed against dust, the unit ensures trouble-free performance
  • Small, Lightweight and portable. Designed for maximum ease of operation and ruggedness
  • No exposed metal parts, Safety features are incorporated including the instant push button switch operation

    Specification

  • Operational Voltage
  • 110 to 600V AC
  • Fuse
  • 0.5A/600V (F)
  • Time limit for continuous
  • >500V : within 5 minutes
  • Frequency response
  • 50/60Hz
  • Cord
  • 1.3m (R:red S:white T:blue)
  • Applicable standards
  • IEC 61010-1 CAT 300V, CAT 600V Pollution degree 2
  • Dimension
  • 106(L) × 75(W) × 40(D)mm
  • Weight
  • Approx. 350g(Main unit only)
