TAG-101 Audio Generator In Pakistan

Buy Now TAG-101 Audio Generator At Best Price In Pakistan 2026.

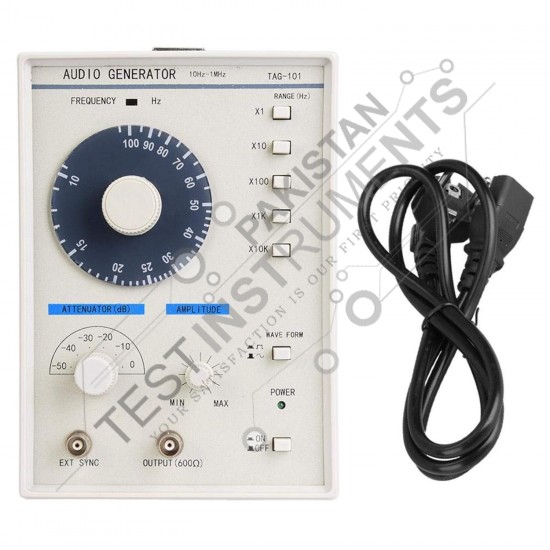

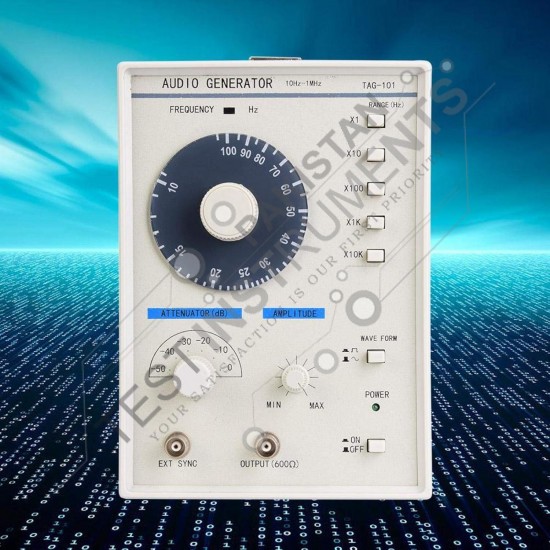

The TAG-101 Audio Generator is a precision low frequency signal source designed for generating stable sine and square wave signals from 10Hz to 1MHz. It is widely used by electronics engineers, laboratories, technicians, and maintenance professionals in Pakistan for testing, troubleshooting, calibration, and educational applications.

This reliable analog signal generator features multi-range frequency selection, adjustable output attenuation, low distortion output, and synchronized input capability, making it suitable for audio testing, amplifier analysis, production lines, and research applications. Its rugged bench-top design ensures long-term durability and dependable performance.

Key Features

Frequency range from 10Hz to 1MHz
Sine and square wave output
5 selectable frequency ranges
Low distortion signal generation
Adjustable output attenuator
600Ω output impedance
External synchronization input
High stability and accuracy
Easy-to-use vertical control panel
Suitable for labs, repair benches, and industrial testing

Technical Specifications

Frequency Range

X1 Range: 10Hz to 100Hz
X10 Range: 100Hz to 1kHz
X100 Range: 1kHz to 10kHz
X1K Range: 10kHz to 100kHz
X10K Range: 100kHz to 1MHz

Sine Wave Output

Output Voltage: 5V RMS or more
Output Distortion: 0.1% typical
Output Flatness: ±1.5dB

Square Wave Output

Output Voltage: 10Vp-p
Rise Time: 0.5μs
Duty Ratio: 50% ±5%

Output Characteristics

Output Impedance: 600Ω
Attenuator: 0dB to -50dB in 6 steps

Synchronization

Input Impedance: 10KΩ
External Sync Input: Yes

General Specifications

Frequency Accuracy: ±5% Full Scale
Power Supply: 110V/220V AC, 50/60Hz
Power Consumption: 5W to 8W
Dimensions: Approx. 142 × 233 × 197 mm
Weight: Approx. 3.5kg

Applications

Audio amplifier testing
Signal tracing and troubleshooting
Electronic circuit analysis
Laboratory experiments
Educational training in Pakistan
Production line testing
Maintenance and calibration work
Research and development applications

Package Includes

TAG-101 Audio Generator
Power cord
Test leads / test clip
User manual
