KEW3124A KYORITSU Price In Pakistan

Buy KEW3124A KYORITSU Insulation Resistance Tester at Best Price in Pakistan 2025.

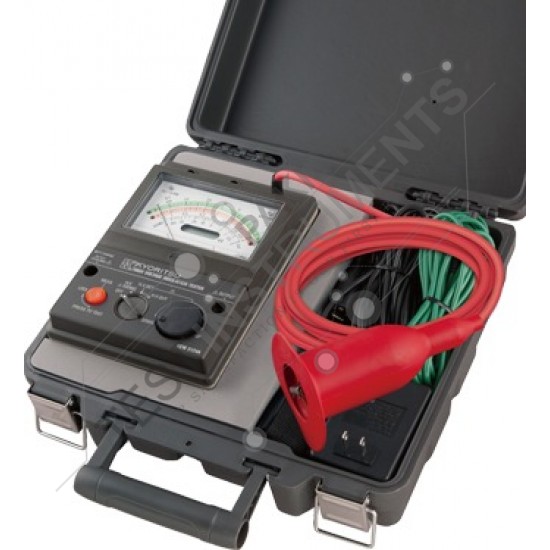

The KEW3124A Insulation Resistance Tester from KYORITSU Japan is a professional-grade instrument designed for accurate high-voltage insulation testing. With a variable test voltage range from 1kV to 10kV and measurement capability up to 100GΩ, it’s ideal for advanced electrical inspections, maintenance, and equipment testing.

This model provides DC voltage output for recorders, displays output voltage digitally, and automatically discharges residual charge after each test for enhanced safety. It operates efficiently using Ni-MH rechargeable batteries or an external DC 15V power supply, making it convenient for both field and workshop environments.

Key Features

• Wide Test Voltage Range: Variable from 1kV to 10kV

• Insulation Resistance Measurement: Up to 100GΩ

• Digital Display: Shows real-time output voltage clearly

• Automatic Discharge Function: Safely releases stored charge after testing

• DC Output for Recorders to log data easily

• Rechargeable Ni-MH Batteries for long, stable operation

• Compact and Portable: Lightweight and durable for field use

Technical Specifications

Test Voltage:

• Variable from 1kV to 10kV

• Fixed at 1000V

Measuring Ranges (Auto-Ranging):

• 1.6 to 100GΩ (Auto)

• 1 to 100MΩ

Measurement Accuracy:

• 0.05 to 50GΩ / 1 to 100MΩ: ±10% rdg

• Other ranges: ±1% of scale length

Open Circuit Voltage:

• ±2% / ±10% (depending on range)

Output Voltage and Set Voltage Display:

• DC 0 to 10kV ±2%rdg ±2dgt

Power Supply:

• Ni-MH Rechargeable Batteries (1.2V × 8)

• External DC 15V Input

Dimensions:

• 200(L) × 140(W) × 80(D) mm

Why Choose KEW3124A

• Trusted KYORITSU Japan quality

• Designed for industrial-grade insulation testing

• Combines accuracy, portability, and safety

• Perfect for power utilities, manufacturing plants, and maintenance engineers

Buy KEW3124A KYORITSU Insulation Tester online in Pakistan at the best price in 2025 from Test Instruments Pakistan. Ensure accurate, reliable, and safe insulation measurements for every project.
