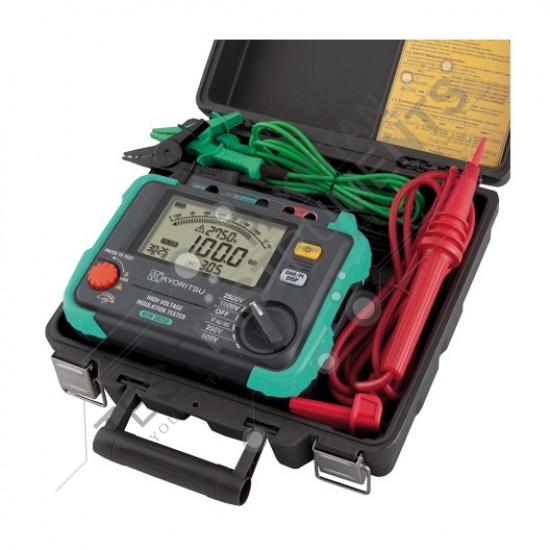

KEW3025B KYORITSU

Name: KEW3025B KYORITSU
Brand: KYORITSU
Availability: OutOfStock

Pre-Order

KEW3025B KYORITSU

Qty

Robust & Ergonomic Design!
De Facto Standard High Voltage Insulation Testers!!

Insulation resistance
Test voltage	250V	500V	1000V	2500V
Measuring range	0.0 to 100.0MΩ	0.0 to 99.9MΩ 80 to 1000MΩ	0.0 to 99.9MΩ 80 to 999MΩ 0.80 to 2.00GΩ	0.0 to 99.9MΩ 80 to 999MΩ 0.80 to 9.99GΩ 8.0 to 100.0GΩ
Accuracy	±5%rdg±3dgt	±5%rdg±3dgt	±5%rdg±3dgt	±5%rdg±3dgt
Short circuit current	1.5mA
Rated test current	0.7 to 0.9mA at 0.25MΩ load	0.8 to 1mA at 0.5MΩ load	1 to 1.2mA at 1MΩ load	1 to 1.2mA at 2.5MΩ load
Open circuit current	250V +10%,-10%	500V +20%,-10%	1000V +20%,-0%	2500V +20%,-0%
Voltage measurement
Measuring range	30 to 600V AC (50/60Hz) ±30 to ±600V DC
Accuracy	±2%rdg±3dgt
General
Applicable standards	IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-031, IEC 61326-1, 2-2
Power source	DC12V : LR14/R14 × 8pcs
Dimension	177 (L) × 226 (W) × 100 (D) mm 300 (L) × 315 (W) × 125 (D) mm (Carrying case [Hard])
