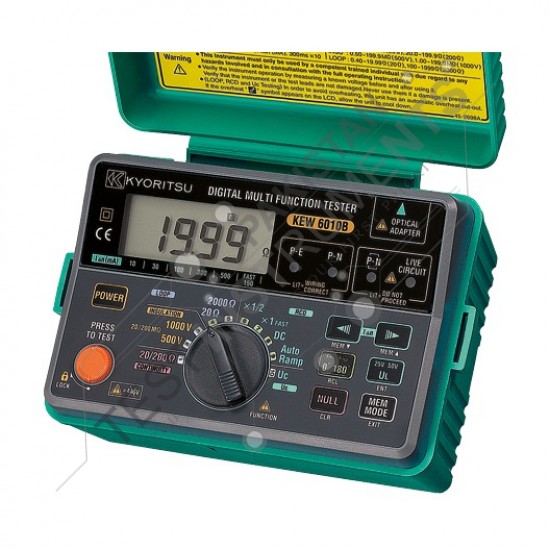

KEW6010B KYORITSU

KEW6010B KYORITSU
Pre-Order
KEW6010B KYORITSU
  • Stock: Pre-Order
  • Model: MULTI FUNCTION INSTALLATION TESTER
KYORITSU KYORITSU
Based on 0 reviews. - Write a review
Get a Quote
Ask for price
Add to Wish List Compare this Product

Designed to IEC 61010-1, IEC 61557

  • Designed to IEC 61010-1, IEC 61557
  • Data Memory: 300 measured results
  • Download results to PC by using 8212 data communication adapters through optical RS-232C port


  • Continuity Testing
  • Measuring Range
  • 20/200Ω (Auto-Ranging)
  • Open Circuit Voltage
  • > 6V
  • Short Circuit Current
  • > 200mA
  • Accuracy
  • ±(3%rdg + 3dgt)
  • Insulation Resistance Testing
  • Measuring Range
  • 20/200MΩ (Auto-Ranging)
  • Test Voltage
  • 500/1000V
  • Open Circuit Voltage
  • +20 to 0%
  • Rated Current
  • > 1mA
  • Accuracy
  • ± (3%rdg + 3dgt)
  • Loop Impedance Testing
  • Impedance Range
  • 20/2000Ω
  • Rated Voltage
  • 230V + 10 to 15%(50Hz)
  • Normal Test Current
  • 20Ω:25A/10ms
    2000Ω:15mA/350ms max.
  • Accuracy
  • ±(3%rdg + 8dgt)
  • RCD Testing
  • Test Current
    (Test Current Duration)
  • x1/2, x1
  • 10, 30, 100, 300, 500mA (2000ms)
  • Fast
  • 150mA (50ms)
  • DC
  • 10, 30, 100, 300mA (2000ms), 500mA (200ms)
  • Auto Ramp
  • Goes up by 10% from 20% to 110% of IΔn. 300ms×10
  • Rated Voltage
  • 230V + 10 to 15% [50Hz]
  • Accuracy
  • Test Current
  • x1/2: -8 to 2%
    x1, FAST: +2%+8%
    DC: ±10%
    Auto Ramp: ±4%
  • Trip Time
  • ±(1%rdg + 3dgt)
  • Uc Testing
  • Measuring Range
  • 100V
  • Rated Voltage
  • 230V + 10 to 15% (50Hz)
  • Test Current
  • 5mA at IΔn = 10mA
    15mA at IΔn = 30/100mA
    150mA at IΔn = 300/500mA
  • Accuracy
  • +5% +15%rdg±8dgt
  • Applicable standards
  • IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2, IEC 61010-2-034, IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40)
  • Power source
  • R6/LR6 × 8
  • Dimension
  • 115(L) × 175(W) × 86(D)mm
  • Weight
  • Approx. 840g
  • Accessories
  • 7122B (Test leads)
    KAMP10 (Test lead with IEC connector)*1
    8923 (Fuse[0.5A/600V] × 1 (included), 1 (spare)
    9092 (Cord case)
    9121 (Shoulder strap)
    Shoulder pad
    Instruction manual, R6(AA) × 8
  • Optional Accessories
