WINAPEX 60B+
- Stock: In Stock
- Model: Digital Insulation Resistance Tester
WINAPEX 60B+ Digital Insulation Resistance Tester in Pakistan
Buy Now WINAPEX 60B+ Insulation Tester at Best Price in Pakistan 2026.The WINAPEX 60B+ Digital Insulation Resistance Tester is a professional-grade electrical testing device designed for measuring insulation resistance in cables, motors, transformers, and electrical installations. This digital megger provides accurate and stable readings, making it an essential tool for electricians, engineers, and maintenance professionals.
Equipped with multiple test voltage options (250V, 500V, and 1000V), the WINAPEX 60B+ allows precise insulation testing across a wide range of applications. It features a large LCD display with backlight, ensuring clear readings even in low-light environments.
With a wide measurement range up to 2000MΩ, fast response time, and built-in safety protections, this insulation tester ensures reliable performance during high-voltage testing. It is widely used in Pakistan for industrial maintenance, electrical safety inspections, and troubleshooting insulation faults.
Key Features
- Insulation resistance testing up to 2000MΩ
- Multiple test voltages: 250V / 500V / 1000V

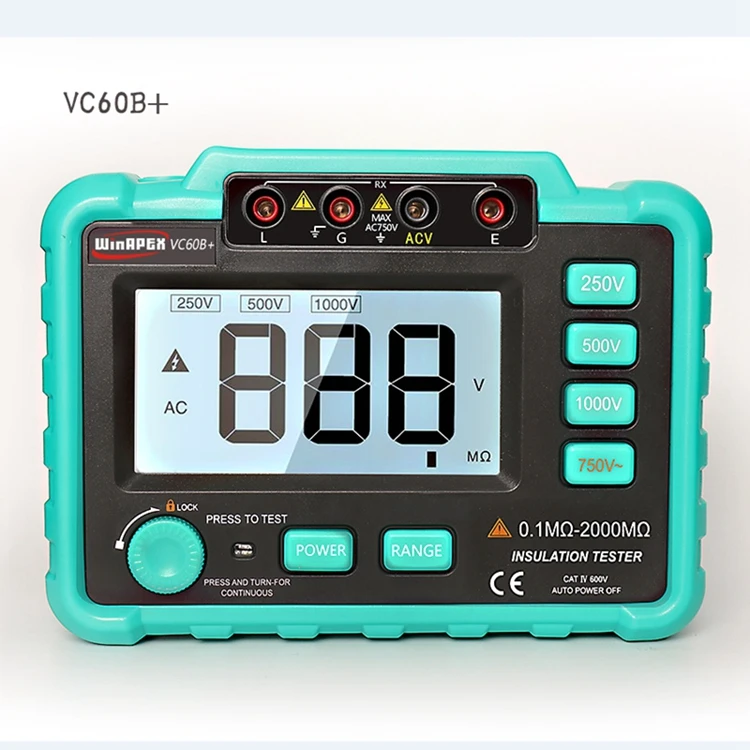

- Large LCD display with backlight

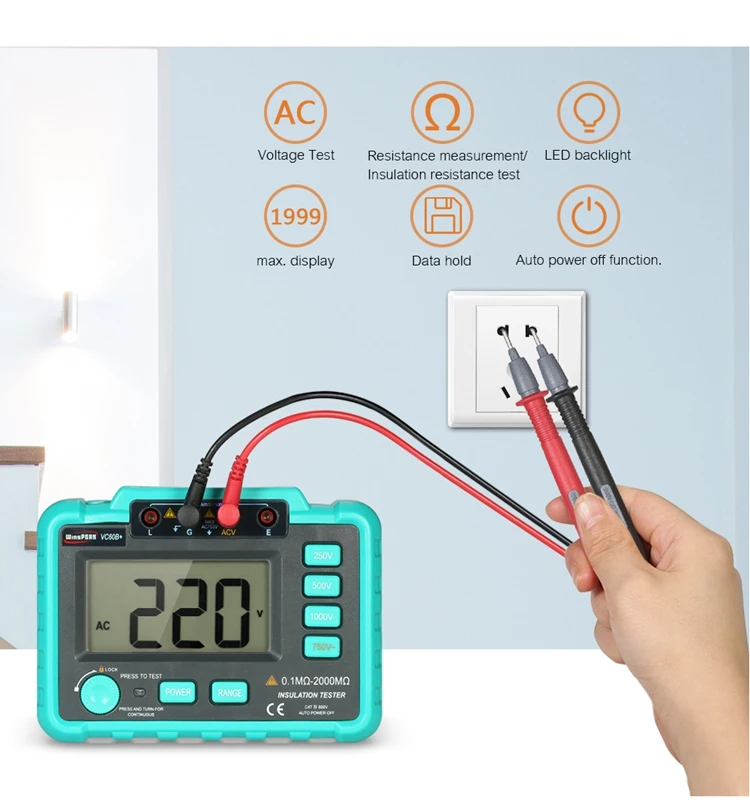

- Measures AC and DC voltage
- High accuracy and stable performance
- Data hold function for easy reading
- Auto power-off for battery saving
- Overload and high-voltage protection
- Low battery indication
- Durable and portable design
Technical Specifications
Insulation Testing
- Test Voltages: 250V / 500V / 1000V DC
- Insulation Resistance Range: Up to 2000MΩ
- Accuracy: ±(4% + 2 digits)
Voltage Measurement
- AC Voltage: Up to 750V
- DC Voltage: Up to 1000V
Performance
- Display: 1999-count LCD with backlight
- Sampling Rate: Approx. 3 times/sec
- Functions: Data hold, auto power-off, low battery indication
General

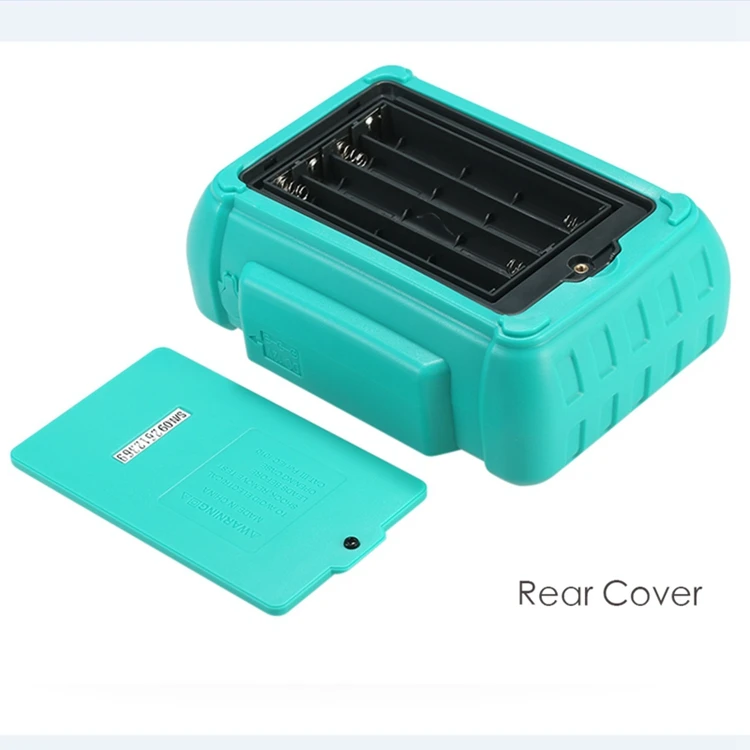

- Power Supply: 6–8 × 1.5V AA batteries
- Operating Temperature: 0°C to 40°C
- Dimensions: Approx. 170 × 125 × 60 mm
- Weight: Approx. 800–900g
- Design: Portable handheld insulation tester
Applications
- Insulation testing of electrical cables and wiring
- Motor and transformer insulation inspection
- Industrial electrical maintenance
- Power distribution system testing
- Electrical safety inspections
- Telecom and electrical installations testing

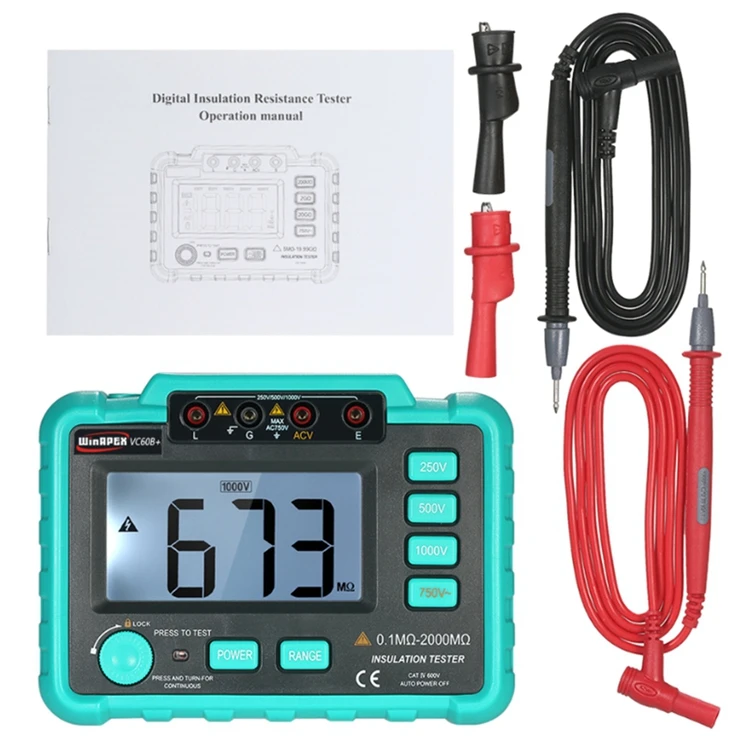

Package Includes
- WINAPEX 60B+ Insulation Tester
- Test leads with alligator clips
- Batteries
- User manual
