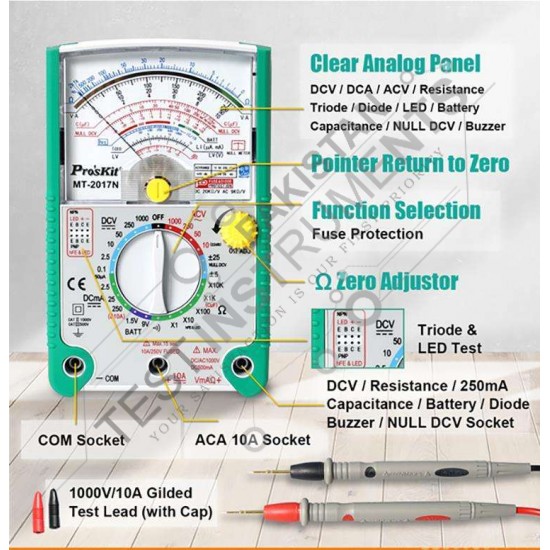

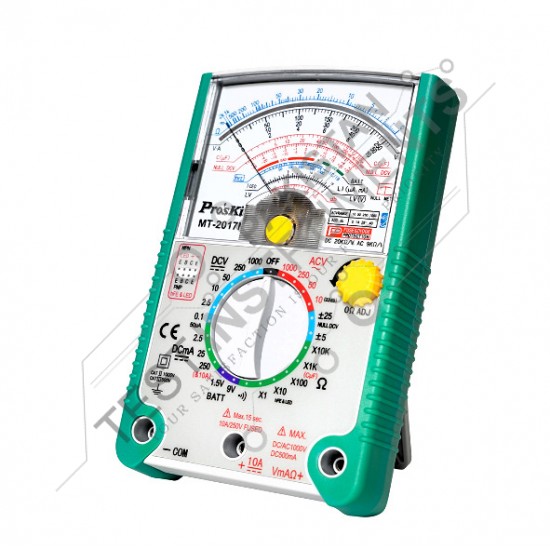

Pro'sKit MT-2017N Analog Multimeter In Pakistan
Buy the Pro'sKit MT-2017N Protective Function Analog Multimeter in Pakistan at the best price.
The Pro'sKit MT-2017N is a professional analog multimeter designed for electrical maintenance, industrial troubleshooting, engineering laboratories, technical training institutes, workshops, and DIY applications. It features a mirrored aluminum dial plate for improved reading accuracy, comprehensive overload protection circuitry, and a rugged anti-slip protective case for enhanced durability.
This analog multitester measures AC voltage, DC voltage, center-zero DC voltage, DC current, resistance, capacitance, batteries, diodes, LEDs, transistors, and continuity. The meter incorporates dual fuse protection, resettable protection for resistance ranges, and high-quality gold-plated test probes for reliable measurements.
Its large mirrored scale minimizes parallax errors, making it suitable for educational institutions, electronics technicians, electricians, maintenance engineers, and industrial users who prefer the responsiveness and visibility of an analog meter.
Key Features
Protective Function Analog Multimeter
Mirrored Aluminum Dial Plate
Full Overload & Misuse Protection
Anti-Slip Shock Resistant Protective Case
DC Voltage up to 1000V
AC Voltage up to 1000V
DC Current Measurement up to 10A
Resistance Measurement up to 20MΩ
Capacitance Measurement up to 2000µF
Diode, LED and Transistor Testing
Continuity Buzzer Function
Battery Testing Function
Gold-Plated Test Probes
Built-In Stand and Hanging Hook
Technical Specifications
| Specification | Details |
|---|---|
| Model | MT-2017N |
| Brand | Pro'sKit |
| Display Type | Analog Pointer |
| Input Impedance DC | 20kΩ/V |
| Input Impedance AC | 9kΩ/V |
| DC Voltage | 0.1V / 2.5V / 10V / 50V / 250V ±3% FSD |
| DC Voltage Max | 1000V ±4% FSD |
| Center Zero DC Voltage | ±5V / ±25V ±5% FSD |
| AC Voltage | 10V / 50V / 250V ±4% FSD |
| AC Voltage Max | 1000V ±5% FSD |
| DC Current | 50µA / 2.5mA / 25mA / 250mA ±3% FSD |
| DC Current Max | 10A ±4% FSD |
| Resistance | ×1, ×10, ×100, ×1k, ×10k |
| Resistance Range | 0.2Ω to 20MΩ |
| Capacitance | Up to 2000µF Approx. |
| Battery Test | 1.5V / 9V |
| Continuity Test | Yes |
| Diode Test | Yes |
| LED Test | Yes |
| Transistor Test | Yes |
| Power Source | 1.5V Battery + 9V Battery |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Dimensions | 171 × 108 × 37 mm |
| Weight | Approx. 390 g |
| Safety Rating | IEC61010-1 CAT II 1000V / CAT III 500V |
Specifications verified from Pro'sKit official documentation and product manual.
Applications
Electrical Maintenance
Industrial Troubleshooting
Electronics Repair
Engineering Laboratories
Technical Training Institutes
Educational Laboratories
Home Electrical Testing
DIY Electronics Projects
Field Service Applications
Industrial Equipment Inspection
Package Includes
Pro'sKit MT-2017N Analog Multimeter
Protective Leather Case
Gold-Plated Test Leads
User Manual
Battery Set
