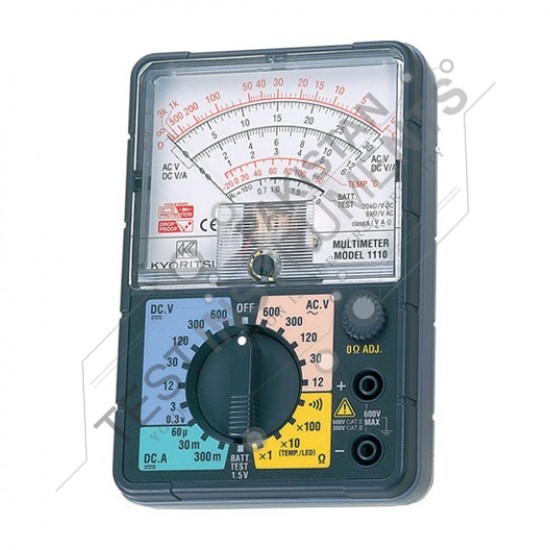

KEW1110 KYORITSU Analog Multimeter Price In Pakistan

The KEW1110 KYORITSU Analog Multimeter is a heavy-duty, high-sensitivity analog meter designed for accurate and reliable electrical measurements. Its robust skeleton-type design with carrying handle ensures durability and portability, while its high sensitivity of DC 20kΩ/V delivers precise readings for professional and industrial applications in Pakistan.

Key Features:

• High Sensitivity: DC 20kΩ/V for precise measurement

• Durable Design: 1-meter drop-proof, heavy-duty construction

• High Voltage Measurement: Can measure line voltage up to AC 600V (voltage to ground MAX AC 300V)

• Protection: 600V ceramic fuse guards against accidental overload

• Additional Functions: Continuity buzzer, battery check, LED check

• Portable Design: Skeleton-type clear case with carrying handle

Measurement Specifications:

DC Voltage (V): 0.3 / 3 / 12 / 30 / 120 / 300 / 600V (±3% FS)
AC Voltage (V): 12 / 30 / 120 / 300 / 600V (±3–4% FS)
DC Current (A): 60µA / 30 / 300mA (±3% FS)
Resistance (Ω): 3 / 30 / 300kΩ (±3% scale length)
Continuity Buzzer: Sounds below 100Ω
Battery Test: 1.5V (0.7 to 2V) ±3% FS (10Ω load)
LED Test: Approx. 10mA at 0Ω (3V battery voltage)
Temperature Measurement: Possible with optional temperature probe 7060

Applicable Standards:

• IEC 61010-1 CAT III 300V / CAT II 600V, Pollution Degree 2

• IEC 61010-2-031

Power Source & Dimensions:

• Batteries: 2×R6 (AA) 1.5V

• Dimensions: 140 × 94 × 39 mm

Why Choose KEW1110 KYORITSU in Pakistan?

The KEW1110 analog multimeter combines durability, high sensitivity, and accurate measurement capabilities. Its robust construction, wide voltage range, and additional functions like continuity buzzer and battery check make it ideal for engineers, electricians, and technicians across Pakistan.

Order the KEW1110 KYORITSU Analog Multimeter today for reliable, professional-grade electrical testing.
