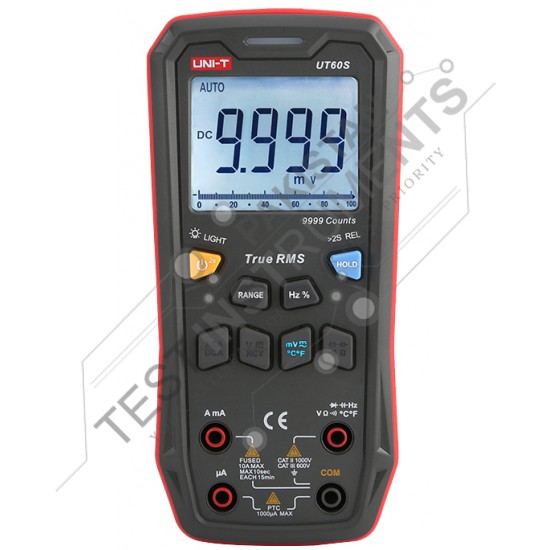

UT60S UNI T
- Stock: In Stock
- Model: Digital Multimeter
UT60 Series Digital Multimeters:
UT60 series digital multimeters provide True-RMS
measurement, 9999-count resolution, non-contact voltage detection and many
convenient features for users’ testing needs. These auto-ranged meters can
measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The
easy-to-use interface with backlight enables you to detect equipment quickly
even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V
safety rating with rugged double-injection housing.
Models in the UT60 Series: UT60EU, UT60BT, UT60S:
Specifications of UT60 Series Digital Multimeters:
Specification | Range | UT60EU | UT60BT | UT60S |
DC Voltage | 9.999mV/99.99mV/999.9mV/ | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
AC Voltage | 9.999mV/99.99mV/999.9mV/ | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
DC Current | 999.9uA/999.9mA/9.999A/10A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
AC Current | 999.9uA/999.9mA/9.999A/10A | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
Resistance | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
Capacitor | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF
(UT60EU/UT60BT)/99.9mF(UT60S) | ±(4.0%+5) | ±(4.0%+5) | ±(4.0%+5) |
Frequency | 99.99Hz～9.999MHz | ±(0.1%+5) | ±(0.1%+5) | ±(0.1%+5) |
Duty Cycle | 0.1～99.9% | ±(3%+5) | ±(3%+5) | ±(3%+5) |
Temperatue | –40℃～1000℃/–40°F～1832°F | ±4℃/±5℉ | ±4℃/±5℉ | ±4℃/±5℉ |
Features | ||||
Bluetooth | √ | |||
Display Count | 9999 | 9999 | 9999 | |
Auto Range | √ | √ | √ | |
REL | √ | √ | √ | |
NCV | √ | √ | √ | |
Diode | √ | √ | √ | |
Continuity Test | √ | √ | √ | |
Acousto-optic Indication (NCV/continuity/battery power) | √ | √ | √ | |
Low Battery Indication | ≤3.6V | √ | √ | √ |
Data Hold | √ | √ | √ | |
Auto Power Off | 15Min | √ | √ | √ |
Operation Temperature | 0℃～40℃ | |||
Safety | CAT II 1000V/CAT III 600V | |||
