CTG-20 FNIRSI
- Stock: In Stock
- Model: Car Paint Tester | Coating Thickness Gauge

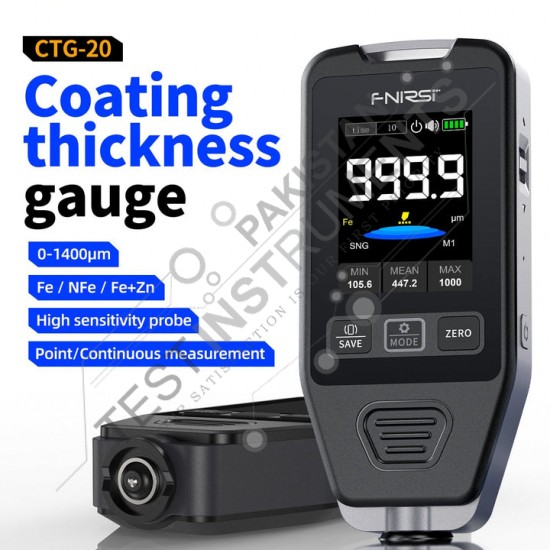

CTG-20 FNIRSI Car Paint Coating Thickness Gauge in Pakistan
Buy Now FNIRSI CTG-20 Paint Thickness Tester at Best Price in Pakistan 2026.The FNIRSI CTG-20 Car Paint Coating Thickness Gauge is a professional automotive inspection tool designed to measure paint and coating thickness on vehicle surfaces. It helps detect repainting, accident repairs, and body filler usage by accurately measuring coating layers on metal surfaces.
This advanced digital gauge uses electromagnetic induction and eddy current technology to automatically detect whether the surface is ferrous (iron/steel) or non-ferrous (aluminum) and then calculates coating thickness precisely. It is widely used in Pakistan by car inspectors, used-car dealers, and detailing professionals for vehicle condition evaluation.
With a wide measurement range up to 1400μm, high accuracy, and fast response time, the CTG-20 ensures reliable and non-destructive testing of car paint layers. Its compact design, rotatable display, and rechargeable battery make it highly portable and easy to use in field inspections.
Key Features
- Measures car paint & coating thickness accurately
- Detection range up to 0–1400μm
- Automatic detection of steel and aluminum surfaces
- Uses electromagnetic induction & eddy current technology
- High accuracy ±(3% + 2μm)
- Fast response and real-time measurement
- Rotatable LCD display for easy reading
- Built-in rechargeable lithium battery
- Auto power-off function
- Ideal for used car inspection and detailing
Technical Specifications
Measurement
- Measuring Range: 0 – 1400 μm
- Accuracy: ±3% + 2 μm
- Resolution: 0.1 μm
- Unit: μm / mil
Performance
- Technology: Electromagnetic induction & eddy current
- Surface Detection: Ferrous & non-ferrous metals
- Calibration: Zero & multi-point calibration
- Response Time: Fast real-time reading
- Display: LCD (rotatable screen)
General
- Power Supply: 600mAh rechargeable lithium battery
- Operating Temperature: -10°C to +50°C
- Dimensions: Approx. 115 × 48 × 18 mm
- Weight: Approx. 83g
- Design: Portable handheld coating tester
Applications
- Used car inspection before purchase
- Car repaint & accident detection
- Automotive detailing and polishing checks
- Workshop quality control
- Insurance inspection reports
- Industrial coating measurement

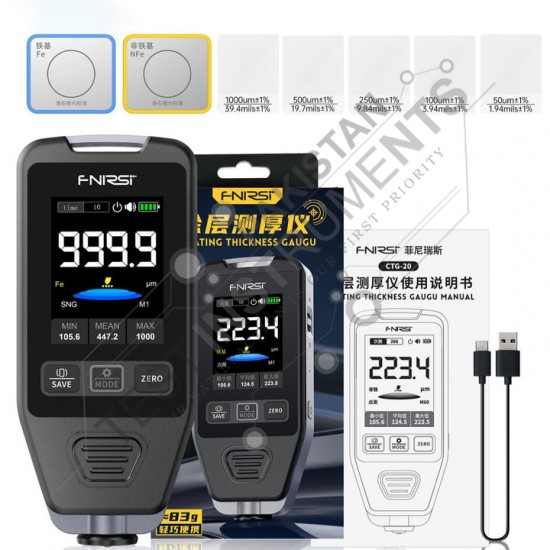

Package Includes
- FNIRSI CTG-20 Coating Thickness Gauge
- Calibration plates
- USB charging cable
- User manual
