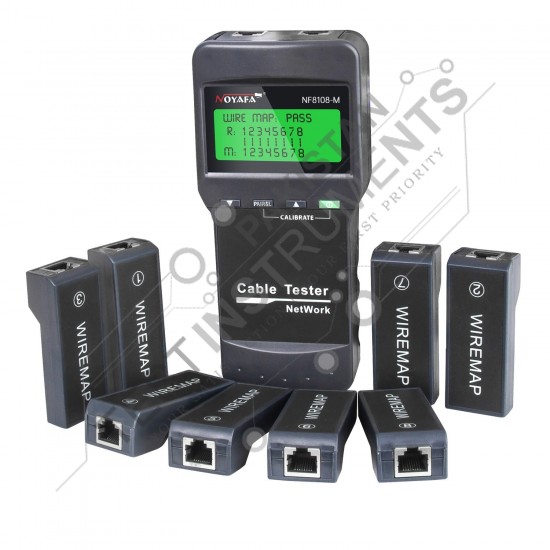

NOYAFA NF-8108M

Features:

1. Measure network cable length and determine the distance of open and short circuit.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit, short circuit, jumper wire, reverse connection .
3. With 8 remote identifiers, more easy to work.
4. Portable unit with long battery life (wait-case 50 hours).
5. Automatically time-delay shut off.
6. Self-checking and automatically compensate any change in battery capacity or ambient temperature.

Technical indexes:

NF8108-M Transmitter specifications

Indictor LCD 53x25 mm

Tone frequency225 Hz

Max. distance of cable map300m

Max. working current Less than 70mA

Compatible connectorsRJ45

Faults LCD display LCD display

Low battery display LCD ( 6.5V)

Voltage protectionAc 60V/DC 42V

Battery Type DC 4x1.5v

Dimension (LxWxD)184x84x46mm

NF8108-M Remote unit specifications

Compatible connectorsRJ45

Remote units8

Dimension (LxWxD)78x33x22mm

Attention:

1.Don't connected high voltage lines to avoid burring out the machine.

2.Put into the right place to avoid hurting others, because of the sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it.

Package Include:

1 X transmitter (battery is not include)

8 X remote
