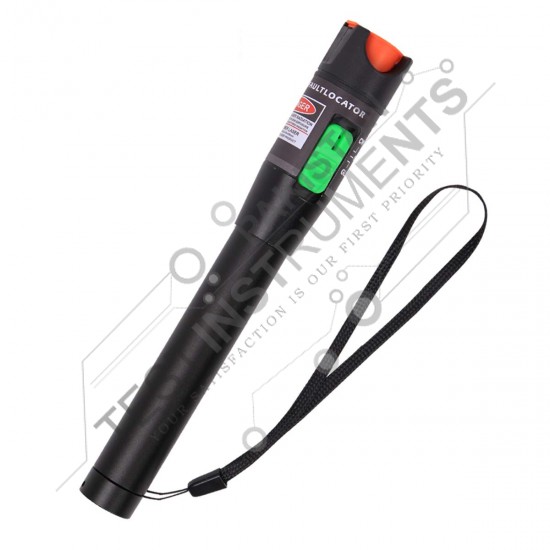

HT30 Fiber Visual Fault Locator 30KM In Pakistan

The HT30 Fiber Visual Fault Locator 30KM is a professional fiber optic testing device designed for detecting faults, breaks, bends, and damaged connectors in fiber optic cables. It uses a 650nm visible red laser that allows technicians to easily identify issues even over long distances of up to 30 kilometers.

This device is widely used in telecom networks, ISP installations, and fiber optic maintenance work across Pakistan. Its compact and lightweight design makes it highly portable and suitable for field technicians.

The body is made of durable aluminum alloy, ensuring long-term reliability in harsh working conditions. It supports both continuous and flashing modes, allowing accurate fault identification based on different testing requirements.

The HT30 Fiber Visual Fault Locator comes with a universal 2.5mm adapter that is compatible with SC, ST, and FC connectors. With an additional adapter, it can also be used with LC connectors, making it suitable for various fiber optic systems.

It includes a dust cap to protect the connector, a replaceable ceramic sleeve for extended lifespan, and a hanging rope for convenient usage in field environments. The device is powered by two AA batteries and is designed for efficient and stable performance.

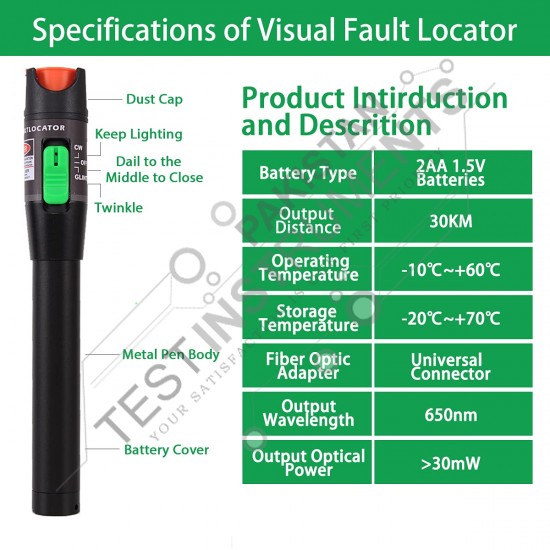

Specifications

Product Name: HT30 Fiber Visual Fault Locator
Wavelength: 650nm
Output Power: 30mW
Testing Distance: Up to 30KM
Connector Type: 2.5mm universal (SC, ST, FC), LC with adapter
Operating Modes: Continuous and flashing
Power Supply: 2 x AA batteries
Material: Aluminum alloy
Dimensions: 170 x 24 mm
Weight: 150g
Operating Temperature: 10°C to 60°C
Storage Temperature: -40°C to 85°C

Features

High power 650nm red laser for accurate fault detection
Detects fiber breaks, bends, and connector faults quickly
Supports long-distance testing up to 30KM
Continuous and flashing operating modes
Compatible with SC, ST, FC, and LC connectors
Durable aluminum alloy construction
Universal 2.5mm adapter for easy connection
Dust cap for connector protection
Replaceable ceramic sleeve for longer service life
Portable and lightweight design
Suitable for telecom engineers and fiber technicians
