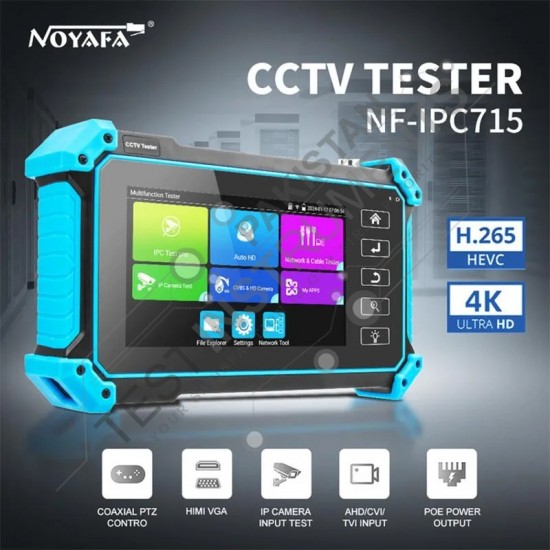

NF-IPC715 NOYAFA

NF-IPC715 NOYAFA

Stock: In Stock
Model: CCTV Camera Tester With 4K Support

65,000

Shipping Price: 0

Description

SPECIFICATION :

Model: NF-IPC715

Display Screen: 5.4 inch IPS touch screen, 1920x1080 resolution

Supported Video Modes:

CVBS:

• 1 channel BNC input, NTSC/PAL (Auto adapt);

• PTZ control, RS485 control, Baud 600-115200bps;

• compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test: 4K/H.265/H.264

• IP Discovery/ Quick ONVIF/ IPC test / RTSP play / Client APK

• Rapid Video: Auto view the video, create testing report

• HIKVISION: Batch activate HIKVISION cameras and modify IP address, modify password etc. Quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

• DAHUA: Batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test:

• 8MP TVI / CVI camera: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

• 8MP AHD test: 3840 x 2160P 15FPS, UTC control / call OSD menu

• Auto HD app: auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

HDMI input: 1 channel HDMI input, support 4K 30FPS. The resolutions as follow:

• 4K_3840 x 2160

• 2K_2560 x 1440P

• 1920×1080P / 1920×1080i

• 720×480P / 720×576P

• 1280×720

• 1024×768P

• 1280×1024P / 1280×900P

• 440×900P, etc

VGA input: 1 channel VGA input, support 2048 x 1152 60FPS. The resolution as follow:

• 2048 x 1152P/1920 x 1200P 60FPS

• 1920×1080P 60FPS

• 1792×1344P 60FPS

• 1680x1050P 60FPS

• 1600x1200P/900P 60FPS

• 1440x900P 60FPS

• 1360x768P 60FPS

• 1280x1024/960/800/768/720P 60FPS

• 1152x870P 60FPS

• 1024x768P 60FPS

• 800x600P 60FPS

• 600x480P 60FPS

Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back.

Power output:

• 12V/3A power: Output DC12V/3A power out, supply temporarily power for the camera

• PoE power output: 48V PoE power output, max power 25.5W

Cable test: UTP & RJ45

• Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

• Test RJ45 cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Tester Play: Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi: Built in WIFI, speeds 150M, display wireless camera image

Audio test: 1 channel audio signal input, test whether sound normal.

Power management: Display DC 12V input & output voltage and power in real time

Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply: DC 12V 1A

Battery: Built-in Lithium ion battery

Working time: 5 hours when charging 3-4 hours

Languages: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off: 1-30 (mins)
