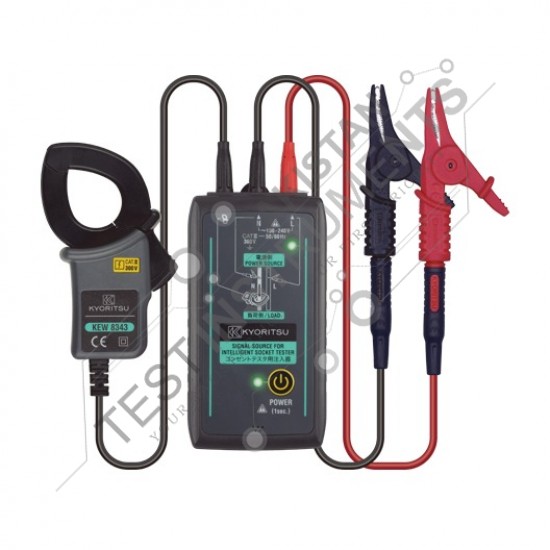

KEW8343 KYORITSU

Applicable models

4506

Conductor size

Ø24mm max.

Test
voltage

Freq.

Approx. 1.8kHz

TRMS

Approx. 20mV rms

Allowable input range

300V AC rms (50/60Hz) continuous / 100A AC (50/60Hz) continuous

Applicable standards

IEC 61010-1, IEC 61010-031,
IEC 61010-2-032 CAT Ⅲ 300V Pollution degree 2, IEC 60529(IP40)

Operating temperature
and humidity range

-10 to 50°C, relative humidity 85% or less (no condensation)

Storage temperature
and humidity range

-20 to 60°C, relative humidity 85% or less (no condensation)

Power source

LR6 (AA)(1.5V) × 6

Dimension

Unit: 112(L) × 61(W) × 42(D) mm
Test voltage injection clamp: 100(L) × 60(W) × 26(D) mm
Cable length: Approx. 1.5m

Weight

Approx. 520g (including batteries)
