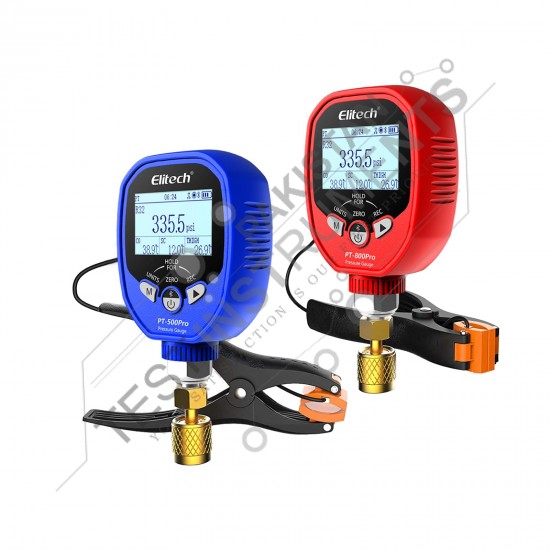

PT500 / PT800 PRO ELITECH
- Stock: In Stock
- Model: Wireless HVAC Digital Manifold Gauge Set
Elitech PT-500&PT-800 Pro Wireless HVAC Digital Manifold
Gauge Set with Removable Temperature Clip
Key Feature
Free App Alarm(iOS and Android): Real-time display of
current pressure value. Settable high/low-pressure alarm. Receive remote APP
push notifications when readings move beyond a pre-set value. The data could be
saved and exported in Excel and PDF format.
Multiple Refrigerants and units: Support the saturated
temperature-pressure comparison table more of 140 kinds of refrigerants. The
unit of pressure can be alternated between 7 measurement units: psi, kg/m.³,
cmHg, inHg, bar, Kpa, Mpa.
Automatic Calculation: Superheat/subcool calculations,
recording, reporting, analyzing data, and more with Elitech Pressure Gauge App
and connected by wireless technology, up to 1187' in ideal conditions (no
obstructions).
Waterproof: The pressure gauge is made by ABS and PPT
and the waterproof level is IP65.
Wide application: This digital HVAC gauges electronic
refrigerant group instrument, measuring temperature and pressure in real-time,
is an auxiliary instrument for the installation, testing, and maintenance of
refrigeration equipment such as air conditioners, fridges, and cold storage.
Service: 1-year warranty. 30 days free & easy
return
Clamp-on Temperature Sensor Specifications
Sensor type | NTC |
Measuring range | -58℉~302℉(-50℃~150℃) |
Accuracy | ±0.54℉(±0.3℃) |
Sensor cable length | 6.56ft(2m) |
Maximum clamp opening | 1 ¹/₂in (38mm) |
Technical Parameters
Measuring range | PT-500: -14.5-500 psi PT-800: -14.5-800 psi |
Resolution | 0.5psi |
Accuracy | ±0.5%FS |
Unit | psi, kg/cm2, cmHg, inHg, bar, kPa, Mpa |
Memory capacity | 7000 readings |
Power supply | 3 x AA batteries |
In-use time | 600 hours |
Max overload pressure | PT-500: 750 psi PT-800: 1000 psi |
Operating temperature | 0°F~140°F(-17.8°C~60°C) |
Fitting | 1/8 NPT |
Dimensions | 5”*3“*1.46” (127*74*37mm) |
Wireless transmission distance | 98.43ft(30m) |
Offline records | 9943 readings |
User Manual |
Packing List：
1 x PT-500 Wireless Digital Pressure Gauge
1 x PT-800 Wireless Digital Pressure Gauge
2 x Clamp-on temperature sensor
3 x AA alkaline batteries
2 x 1/4 Male adapter
2 x 1/4 Female adapter
1 x Bent adapter
1 x T-joint
2 x Velcro strap
*Notes: Temperature sensor can be removed from the clamps
and fixed to the pipe with velcro straps included
140 Refrigerant Profiles:
R11,R12,R13,R14,R21,R22,R23,R32,R40,R41,
R50,R113,R114,R115,R116,R123,R124,R125,R134a,
R141B,R142B,R143A,R152A,R161,R170,R218,R227EA,
R236EA,R236FA,R245FA,R290,R401A,R401B,R401C,R402A,
R402B,R403A,R403B,R404A,R406A,R407A,R407B,R407C,R407D,
R407E,R407F,R408A,R409A,R409B,R410A,R410B,R412A,R413A,R414A,
R414B,R415B,R416A,R417A,R417B,R417C,R419A,R419B,R420A,R421A,
R421B,R422A,R422B,R422C,R422D,R422E,R423A,R424A,R425A,R426A,R427A,
R428A,R429A,R430A,R431A,R432A,R433A,R433B,R433C,R434A,R435A,R436A,
R436B,R437A,R438A,R439A,R440A,R441A,R442A,R443A,R444A,R444B,R445A,
R446A,R447A,R448A,R449A,R449B,R450A,R451A,R451B,R452A,R452B,R452C,
R453A,R454A,R454B,R454C,R455A,R456A,R457A,R458A,R500,R502,R503,R504,
R507A,R508A,R508B,R509A,R510A,R512A,R600,R600a,R601,R601a,R717,R718,
R720,R728,R732,R740,R744,R1233ZD,R1234YF,R1234ZE
