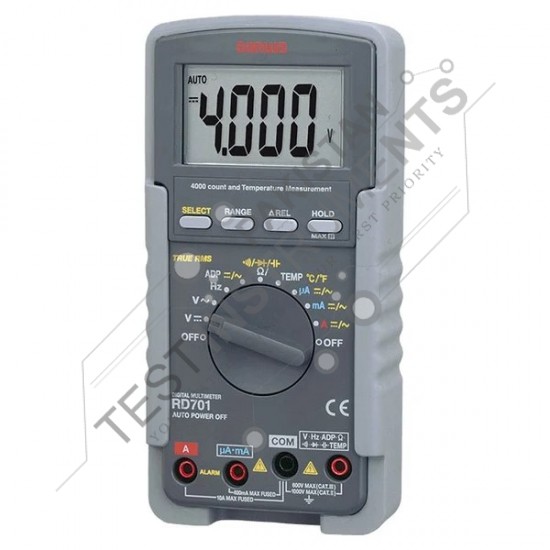

Sanwa RD701 True RMS Digital Multimeter

The Sanwa RD701 is a multifunction True RMS digital multimeter designed for accurate electrical measurements in low-voltage circuits, electronic equipment, home appliances and communication equipment. It features a 4000-count display, 0.3% best accuracy and high input impedance up to 1000 MΩ, helping reduce voltage measurement loading.

Unlike the RD700, the RD701 features AC True RMS measurement, making it suitable for measuring AC signals that are not pure sine waves. It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency and temperature.

The RD701 supports K-type temperature measurement from -20°C to 300°C and frequency measurement up to 1 MHz. It also includes MAX recording, data hold, range hold, relative measurement and an ADP function for current sensors.

For added convenience and safety, the meter has auto/manual ranging, continuity buzzer, an incorrect test-lead insertion alarm, cancellable 30-minute auto power-off, protective holster, lead holder and tilt stand.

Key Features

• True RMS AC measurement
• 4000-count digital display
• 0.3% best accuracy
• High input impedance up to 1000 MΩ
• DC/AC voltage up to 1000V
• DC/AC current up to 10A
• Resistance up to 40MΩ
• Capacitance up to 3000µF
• Frequency up to 1MHz
• K-type temperature measurement: -20°C to 300°C
• MAX value recording
• Data Hold & Range Hold
• Relative measurement function
• Continuity buzzer
• Auto & manual range selection
• Incorrect current-terminal lead insertion alarm
• Cancellable 30-minute auto power-off
• Protective holster with lead holder
• Tilt stand

Specifications

Specifications are based on Sanwa's published RD701 data.

Sanwa RD701 – True RMS Digital Multimeter

4000 Count | 0.3% Accuracy | 1000MΩ High Input Impedance | AC/DC 1000V | 10A | 40MΩ | 3000µF | 1MHz | -20°C to 300°C
