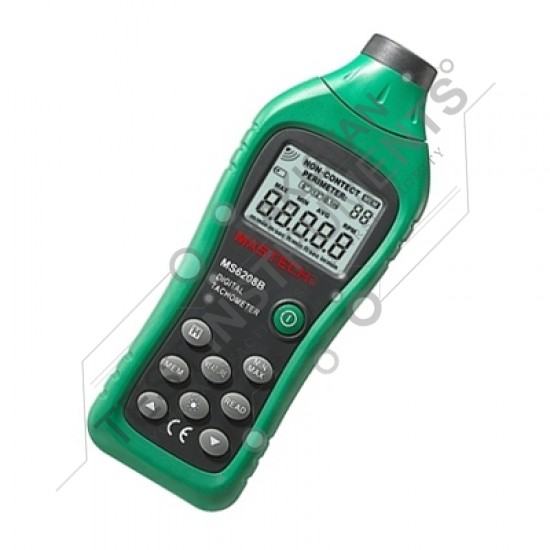

MS6208B Mastech

Overview:
·         Rotation speed display is five-digit LCD number with maximum of 99999.
·         Display 0 below 50RPMM.
·         Measuring distance is 50mm--250mm (when the battery voltage is sufficient).
·         Display voltage lower than 4.5V when batteries are low.
·         Dimension: 155*60*27 mm
·         Weight: 120g
·         Power supply: 4*1.5V SIZE AAA battery
·         Auto off time is 30 sec.
·         Product size: 170mm*60mm*27mm / 6.1"*2.4"*1.1
·         Product weight: 120g
·         Safety rating: CE RoHS
Features:
·         Measuring Distance: 50mm~250mm
·         Auto Power Off
·         MAX/MIN/AVG
·         Unit selection: m/min m/sec ft/min ft/sec in/min
·         Data Logging: 100 groups
·         Data Hold
·         Display Backlight
·         Low Battery Display

Specification

Range

Resolution

Accuracy

---

Non-Contect Measurement

(Photo)

	50~99.99RPM	0.01RPM	+-(0.03%+2)
	100~9999.9RPM	0.1RPM	+-(0.03%+2)
	10000~99999RPM	1RPM	+-(0.03%+2)
