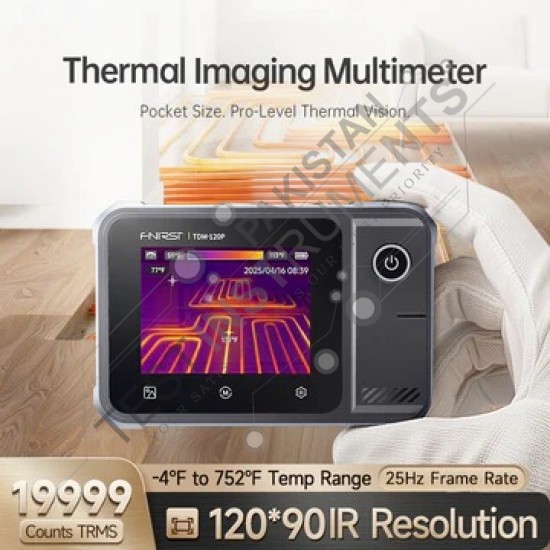

TDM-120P FNIRSI
- Stock: Pre-Order
- Model: Thermal Imaging Multimeter
Specifications :
Thermal Imaging Parameters:
Model
TDM-120 / TDM-120P
7 Color Palette
Arctic / Hot Iron / Iron Red / Rainbow / Lava / Black Hot / White Hot
Detector Type
Vanadium oxide
Field of View
50°
Screen
2.8-inch LCD touchscreen
Frame Rate
≤25Hz
Infrared Resolution
120*90
Temperature Measurement Display
Center point, automatic high / low temperature tracking
Temperature Range
-4℉ ~ 752℉ (-20℃ ~ 400℃)
Temperature Unit
℃ / ℉
Accuracy
±2℃ or ±2% (maximum value measured)
High/Low Temperature Alarm
Support
Emissivity
0.01-1 adjustable
Languages
Chinese / English
Multimeter Parameters (only TDM-120P support):
DC Voltage
Range: 1.9999V / 19.999V / 199.99V / 1000V
Accuracy: ±(0.5%+3)
AC Voltage
Range: 1.9999V / 19.999V / 199.99V / 750.0V
Accuracy: ±(1%+3)
Resistance
Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
Accuracy: ±(0.5%+3)
________________________________________
Range: 1.9999KΩ / 199.99Ω
Accuracy: ±(2.0%+3)
Capacitance
Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0%+5)
________________________________________
Range: 9.999mF / 99.99mF
Accuracy: ±(5.0%+20)
Diode
✔ Support
Continuity
✔ Support
