The UTI260B UNI-T Thermal Imaging Camera is a high-performance industrial diagnostic tool designed for non-contact temperature measurement and thermal analysis. It features a 256×192 infrared resolution sensor, enabling clear thermal images for detecting faults in electrical systems, mechanical equipment, and building structures.

With a wide temperature range of –20°C to 550°C and multiple imaging modes (thermal, visual, fusion, and picture-in-picture), this camera helps professionals quickly identify hotspots, insulation issues, and abnormal temperature variations. Its rugged IP65-rated design and 2-meter drop resistance make it suitable for harsh industrial environments.

Key Features

High IR resolution of 256×192 pixels for detailed thermal imaging.
Wide temperature measurement range from –20°C to 550°C.

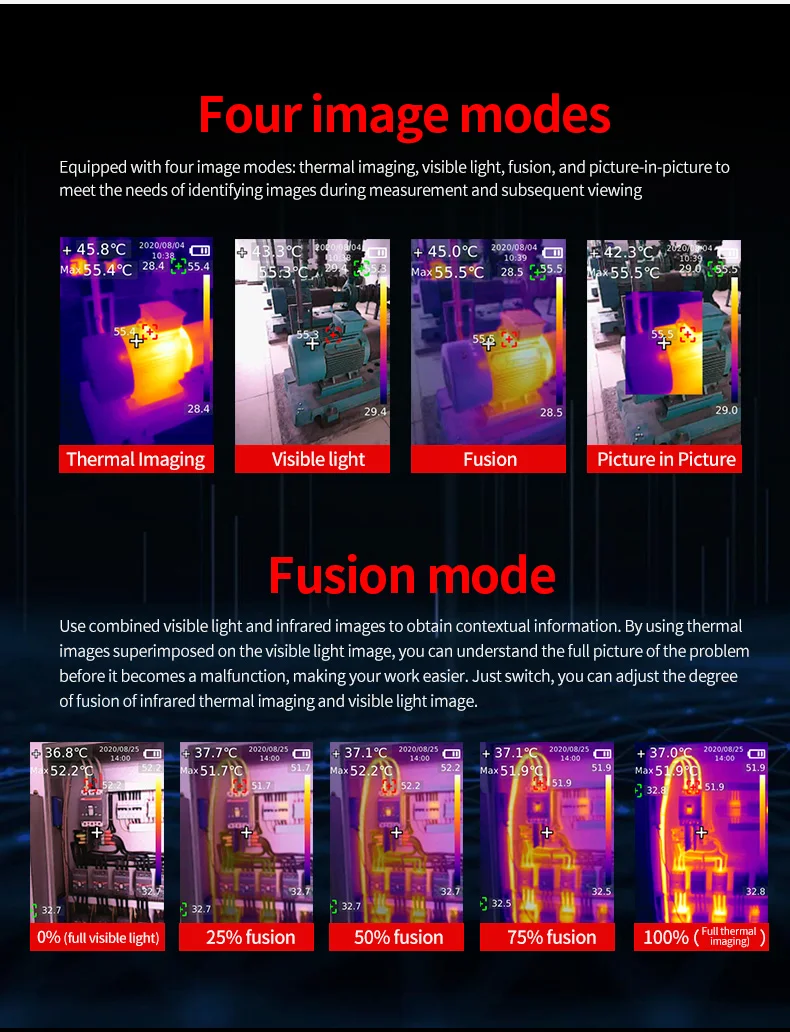

Four display modes: thermal, visual, fusion, and picture-in-picture.

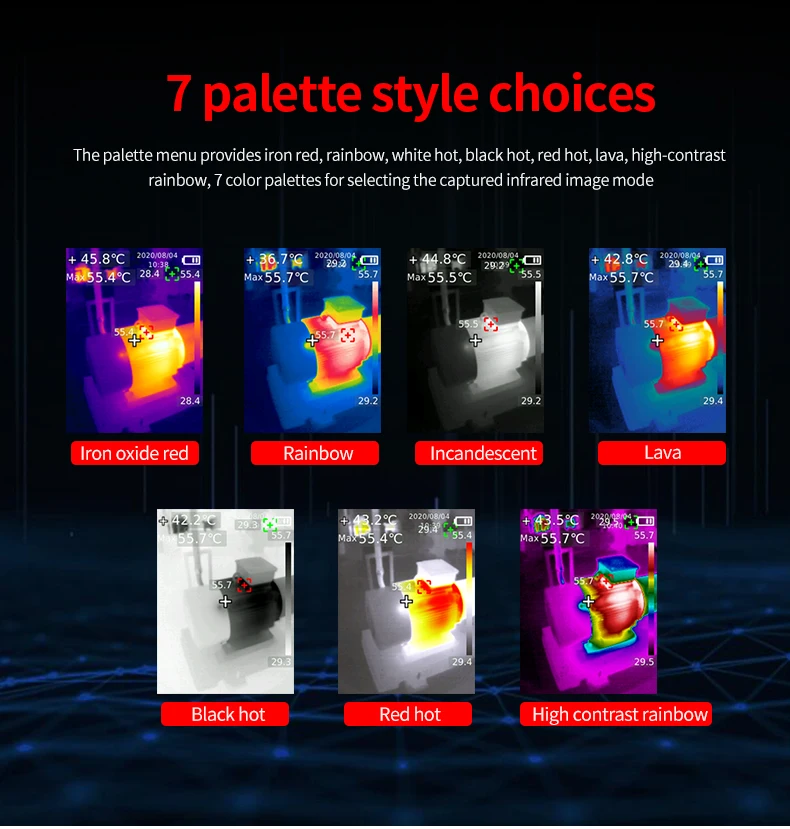

7 color palettes for enhanced image analysis.

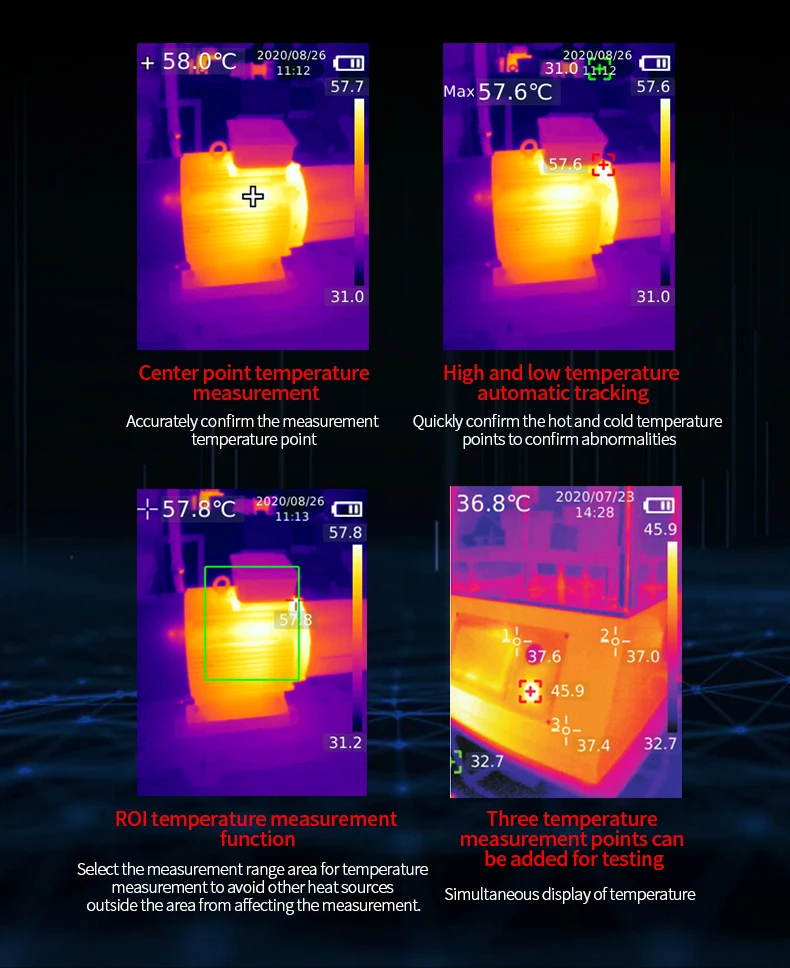

Hot spot and cold spot auto tracking with alarm function.
Built-in digital camera (640×480) for visible images.
2.8-inch TFT LCD display for clear visualization.
IP65 protection and 2-meter drop resistance for durability.
Supports image capture, storage, and PC analysis software.
Rechargeable Li-ion battery with long operating time.

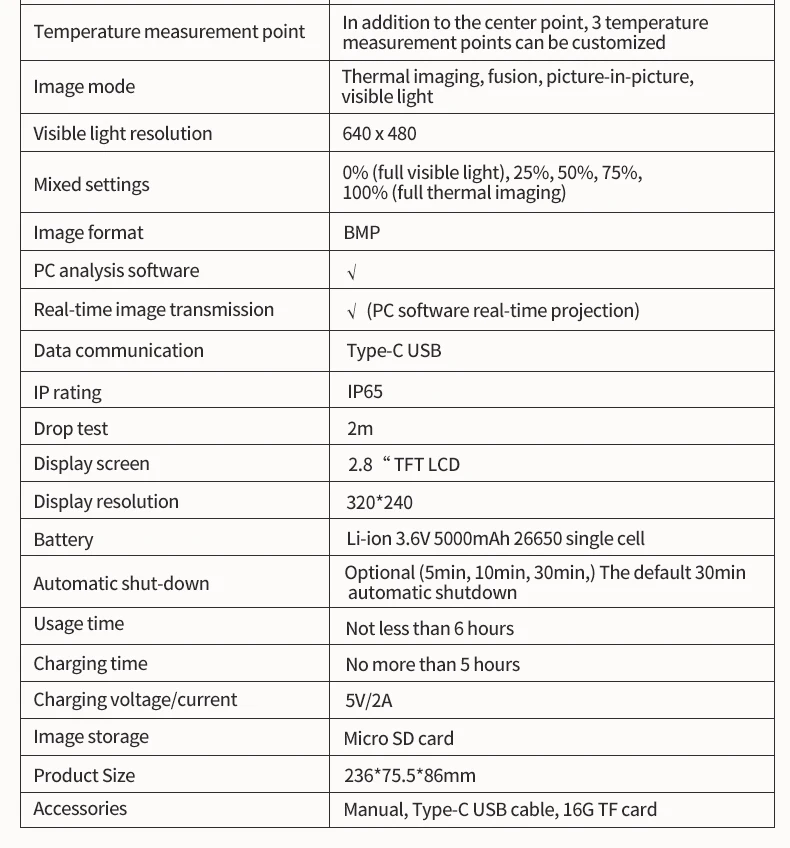

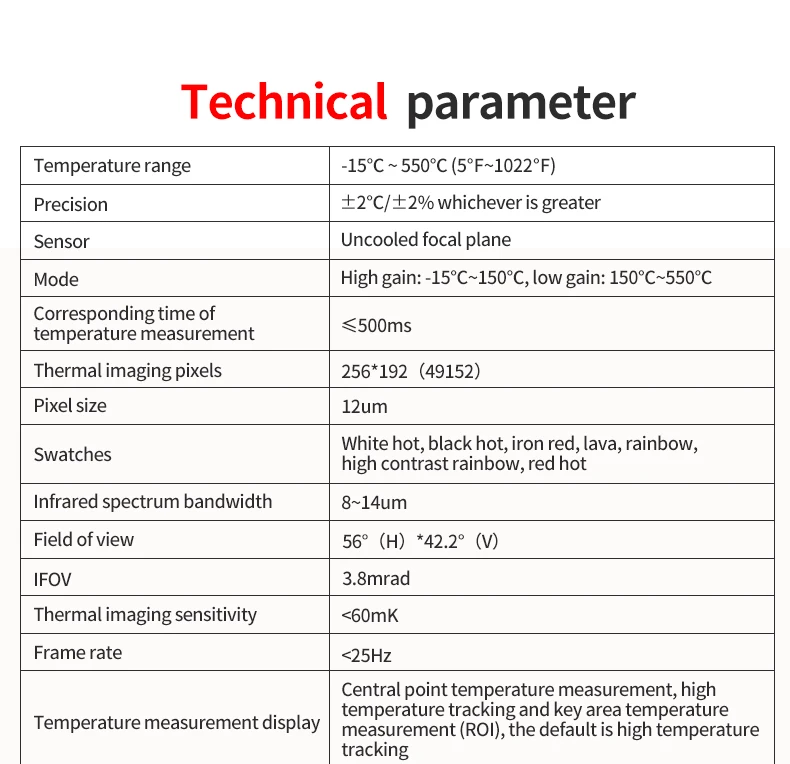

Technical Specifications

Thermal Imaging & Measurement

IR Resolution: 256 × 192 pixels
Temperature Range: –20°C to 550°C
Accuracy: ±2°C or ±2%
Thermal Sensitivity (NETD): ≤50mK
Spectral Range: 8–14 µm

Optical & Display

Display: 2.8” TFT LCD (320 × 240)
Field of View: 56° × 42°
Visible Camera: 640 × 480

Performance & System

Frame Rate: 25Hz
Image Modes: Thermal / Visual / Fusion / PIP
Storage: Micro SD Card (approx. 16GB supported)
Interface: USB Type-C

Physical Specifications

Protection Level: IP65
Drop Test: 2 meters

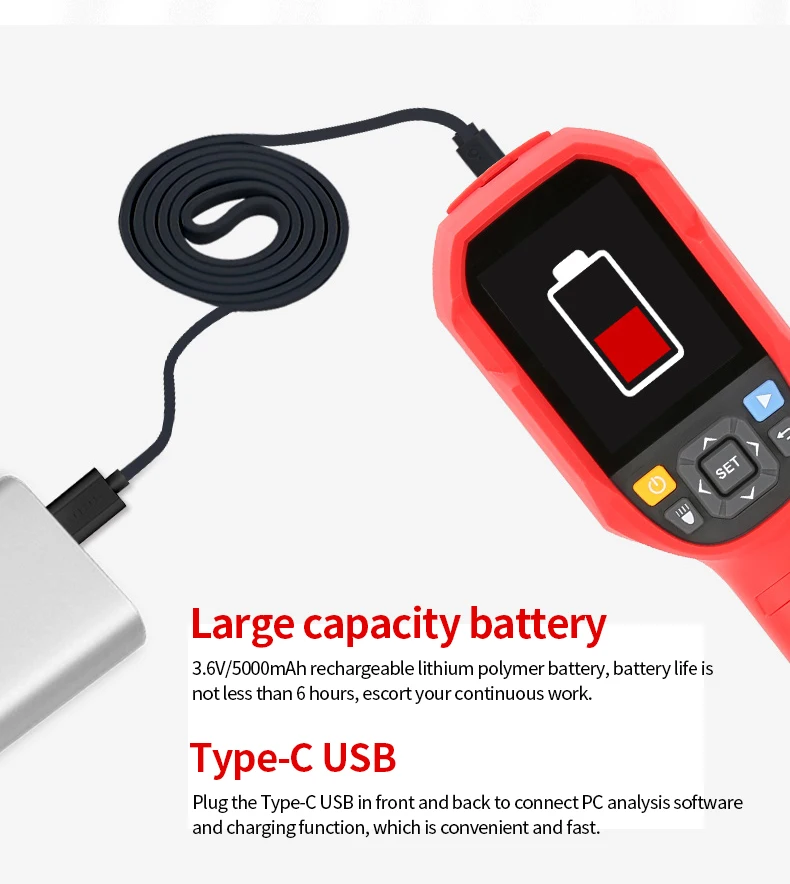

Battery: Rechargeable Li-ion (≈5000mAh)
Operating Time: Up to 6 hours

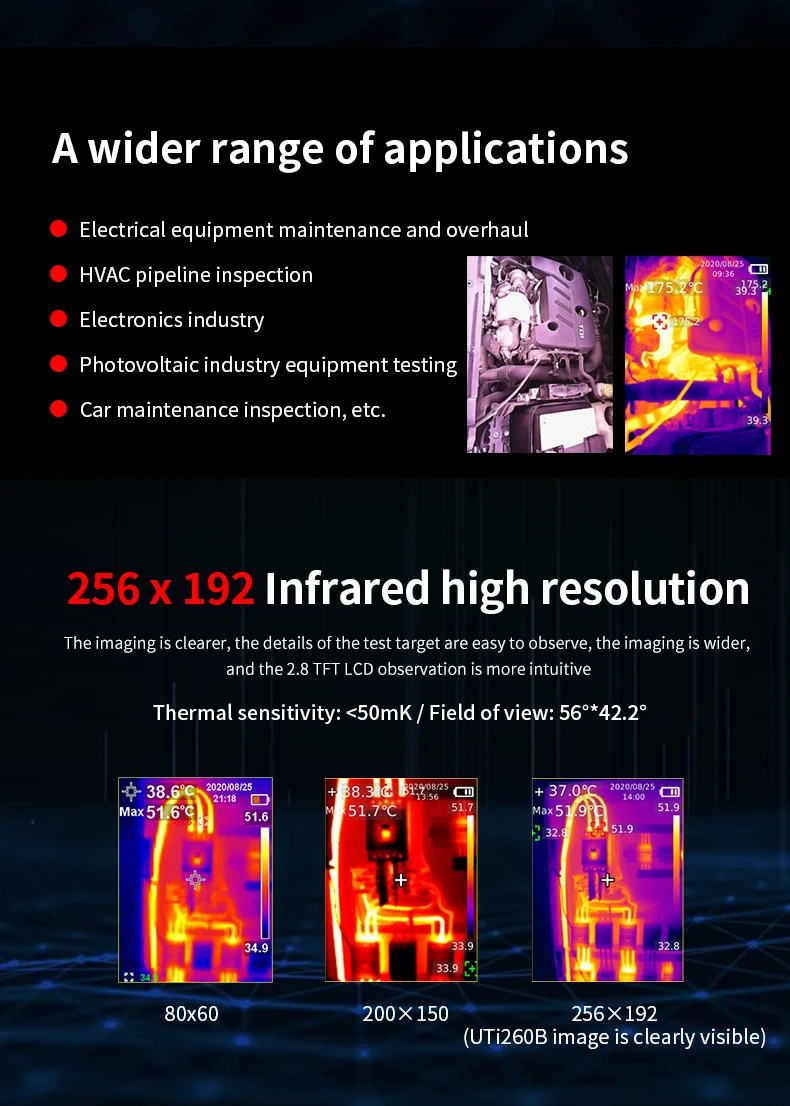

Applications

Electrical panel inspection and fault detection.
Mechanical equipment and motor diagnostics.
HVAC system inspection and maintenance.
Building insulation and energy auditing.
Industrial preventive maintenance.
Automotive and engineering diagnostics.
