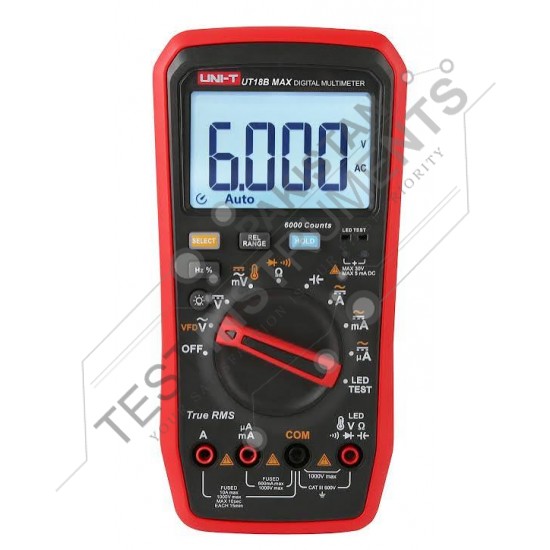

UT18B MAX UNI-T
- Stock: In Stock
- Model: True RMS Digital Multimeter
Technical Specifications | UT15B MAX | UT17B MAX | UT18B MAX | |
Certificates | CE, UKCA, cETLus, REACH, RoHS | |||
Voltage (DC) | 600.0mV/6.000V/60.00V/600.0V/1000V | ±(0.4%+3) | ±(0.4%+3) | ±(0.4%+3) |
Voltage (AC) | 600.0mV/6.000V/60.00V/600.0V/1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) |
VFD (Voltage) | 600.0V | ±(8%) | ±(8%) | ±(8%) |
Current (AC) | 600.0µA/6000µA | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
Current (DC) | 600.0µA/6000µA | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
Resistance | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
Capacitance | 6.000nF/60.00nF~600.0µF/6000µF | ±(2.0%+5) | ±(2.0%+5) | ±(2.0%+5) |
Frequency(Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
Duty cycle | 1%~99.9% | ±(1.0%+4) | ±(1.0%+4) | ±(1.0%+4) |
Temperature(℃/℉) | -55℃~500℃/–67°F~932°F | – | ±2℃/±4℉ | ±2℃/±4℉ |
Main features | ||||
Display count | 6000 | 6000 | 6000 | |
Continuity / Diode | ✔ | ✔ | ✔ | |
Data hold | ✔ | ✔ | ✔ | |
MAX/MIN | ✔ | ✔ | – | |
Relative mode | ✔ | ✔ | ✔ | |
Backlight (adjustable) | ✔ | ✔ | ✔ | |
Auto range/Manual range | ✔ | ✔ | ✔ | |
Auto power off | ✔ | ✔ | ✔ | |
Low battery indication | ✔ | ✔ | ✔ | |
Audible & Visual alarm | ✔ | ✔ | ✔ | |
LED test | – | – | ✔ | |
Mis-plug alarm | ✔ | ✔ | ✔ | |
Any-key wake up | ✔ | ✔ | ✔ | |
Overvoltage category | CATⅢ 600V | CATⅢ 600V | CATⅢ 600V | |
General Characteristics | ||||
Power supply | 2*1.5V AA | 2*1.5V AA | 2*1.5V AA | |
Product color | 426U+1797C | 426U+1797C | 426U+1797C | |
Product weight | 455g | 455g | 455g | |
Product dimension | 182mm*91mm*45mm | 182mm*91mm*45mm | 182mm*91mm*45mm | |
Accessories | 1pcs User manual, 2 pair Test lead(normal gold plated probe & Fine-tipped probe),1pcs K-type thermocouple (UT17B/UT18B MAX only), 2pcs battery, Magnetic hanger(optional) | |||
SPQ | 10 pcs | 10 pcs | 10 pcs | |
Package dimension | ||||
