DESCRIPTION:

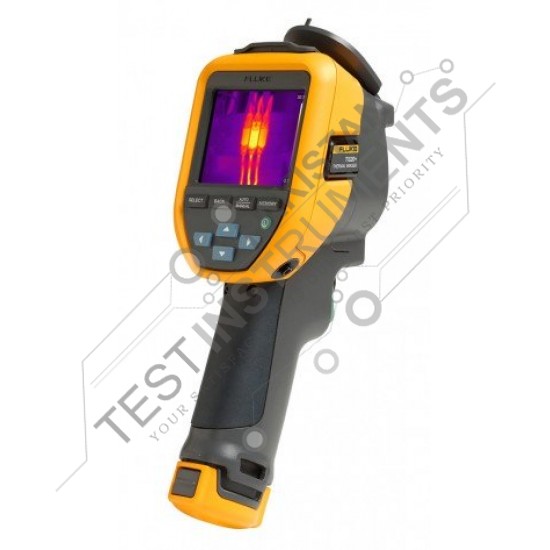

Fluke TiS20+ Thermal Imaging Camera
Continuous touchscreen IR-Fusion™
5 hours battery life
Can withstand drop up to 2 meter
Water and dust resistant—IP54 enclosure rating
Automatically organize and file thermal images with Fluke
Connect™ Asset Tagging
120 x 90 infrared resolution
|
Key Features: |
|
|
Infrared resolution |
120 x 90 (10,800pixels) |
|
IFOV (spatial resolution) |
7.6 mRad, D:S 130:1 |
|
Field of view |
50° H x 38° V |
|
Minimum focus distance |
50cm (20 inches) |
|
Focus system |
Fixed focus |
|
Data transfer |
Mini USB used to transfer image to PC |
|
Wireless connectivity |
Yes, (802.11 b/g/n (2.4 GHz)) |
|
Fluke Connect instant upload |
Yes, connect your camera to your building’s WiFi network
(802.11 b/g/n (2.4 GHz)), and images taken automatically upload to the Fluke
Connect system for storage and viewing on your PC |
|
Image Quality: |
|
|
IR-Fusion technology |
AutoBlend continuous 0 % to 100 %. Adds the context of the
visible details to your infrared image |
|
Display |
3.5" LCD touchscreen (landscape) |
|
Display resolution |
320 x 240 LCD |
|
Thermal sensitivity (NETD) |
60 mK |
|
Frame rate |
9 Hz |
|
Data Storage and Image Capture: |
|
|
Memory |
Internal 4GB memory (includes slot for optional micro SD
card up to 32GB) |
|
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
|
Image file formats |
Non-radiometric (jpeg), or fully radiometric (.is2); no
analysis software required for non-radiometric (jpeg) files |
|
Software |
Fluke Connect desktop software—full analysis and reporting
software with access to the Fluke Connect system |
|
Export file formats with software |
JPG, IS2 |
|
Battery: |
|
|
Batteries (field-replaceable, rechargable) |
Lithium ion smart battery pack with five-segment LED
display to show charge level |
|
Battery life |
≥ 5 hours continuous (without WiFi) |
|
Battery charging time |
2.5 hours to full charge |
|
Battery charging system |
In-imager charging. Optional 12 V automotive charging
adapter |
|
AC operation |
AC operation with included power supply (100 V AC to 240 V
AC, 50/60 Hz) |
|
Power saving |
Automatic Shutdown: 5, 10, 15 and 20 minutes or never |
|
Temperature Measurement: |
|
|
Temperature measurement range (not calibrated below -10
°C) |
TiS20+: -20 °C to 150 °C (-4°F to 302°F) TiS20+ MAX -20 °C
to 400°C (-4°F to 752°F) |
|
Accuracy |
Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2 % at
25 °C, whichever is the greater. |
|
On-screen emissivity correction |
Yes, material table |
|
On-screen reflected background temperature compensation |
Yes |
|
Center-point temperature |
Yes |
|
Spot temperature |
Hot and cold spot markers |
|
Color Palettes: |
|
|
Standard palettes |
6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal,
Grayscale |
|
General Specifications: |
|
|
Infrared spectral band |
8 μm to 14 μm (long wave) |
|
Operating temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Storage temperature |
-20 °C to 50 °C without batteries |
|
Relative humidity |
95 % non-condensing |
|
Safety |
IEC 61010-1: Pollution Degree 2 |
|
Electromagnetic compatibility |
EN 61326-1, CISPR 11: Group 1, Class A |
|
US FCC |
CFR, Part 15C |
|
Vibration and shock |
10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC
60068-2-27 |
|
Drop |
Engineered to withstand 2 meter drop |
|
Enclosure rating |
IP54 (protected against dust, limited ingress; protection
against water spray from all directions) |
