ES3002E FUZRR
- Stock: Pre-Order
- Model: Double Clamp Multi-Function Earth Resistance Tester

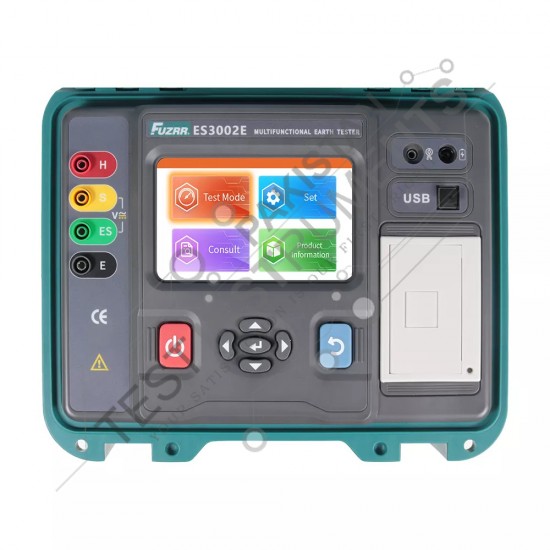

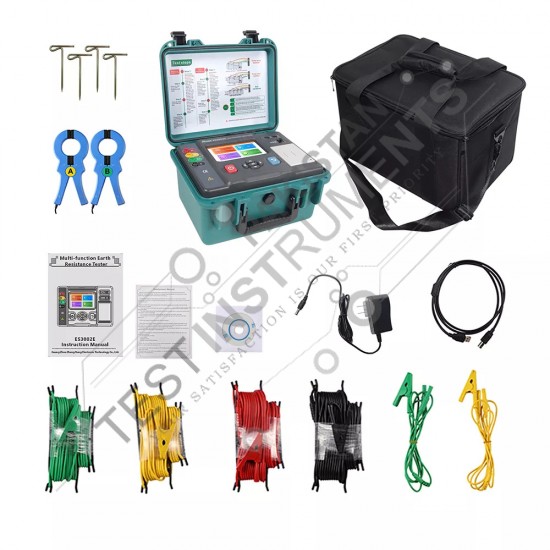

FUZRR ES3002E Double Clamp Multi-Function Earth Resistance Tester in Pakistan
The FUZRR ES3002E Double Clamp Multi-Function Earth Resistance Tester is a professional electrical testing instrument designed for accurate measurement of earth resistance, grounding resistance, soil resistivity, DC resistance, ground voltage, DC voltage, and AC current. It combines multiple grounding measurement methods in one advanced tester, including 2-wire, 3-wire, 4-wire, selection, and dual-clamp earth resistance testing.
A major advantage of the FUZRR ES3002E is its double clamp grounding resistance measurement, which allows online testing without installing auxiliary ground rods and without disconnecting the grounding system from the equipment. This makes it particularly useful for field technicians and electrical professionals who need convenient clamp earth resistance testing in operating installations.
The ES3002E also provides AC current measurement up to 1000A, soil resistivity measurement up to 9999kΩm, 500 groups of internal data storage, USB connectivity, color display, microprocessor-controlled measurement, and a rechargeable lithium battery.
FUZRR ES3002E Earth Resistance Tester – Key Features
- Double clamp earth resistance tester for online grounding measurement
- Grounding resistance measurement using 2-wire, 3-wire, and 4-wire methods
- Dual-clamp grounding resistance: 0.00Ω to 200Ω
- Ground resistance measurement: 0.000Ω to 200.00kΩ
- Soil resistivity measurement: 0.00Ωm to 9999kΩm
- AC current measurement: 0.00A to 1000.0A
- DC resistance measurement up to 200.00kΩ
- Ground voltage measurement up to 50.00V
- DC voltage measurement up to 50.00V
- No auxiliary ground rod required for dual-clamp measurement
- Large-diameter current clamp design
- Fast filtering technology to minimize measurement interference
- Microprocessor-controlled measurement system
- Color display with backlight
- 500 groups of measurement data storage
- USB interface for data reading and record saving
- Built-in rechargeable 11.1V lithium battery
- Automatic power-off function
- IP45 protection
What Is the FUZRR ES3002E Double Clamp Earth Resistance Tester?
The FUZRR ES3002E is a multifunctional earth resistance and grounding resistance tester designed for professional electrical inspection and maintenance. Unlike conventional earth resistance testers that may require auxiliary ground electrodes for certain measurements, the ES3002E provides a dual-clamp method that enables online grounding resistance measurement without disconnecting the grounding system.
This makes the ES3002E particularly useful when technicians need to inspect grounding systems that are already connected to electrical equipment, power infrastructure, communication systems, industrial installations, or other operating networks.
Dual Clamp Ground Resistance Measurement Without Auxiliary Ground Rod
The most important feature of the FUZRR ES3002E is its dual-clamp grounding resistance measurement capability. Using the large-diameter current clamp and double-clamp technology, technicians can perform online grounding resistance measurements without installing an auxiliary ground rod and without isolating the grounding system from the equipment.
This can significantly simplify field testing where traditional auxiliary electrode methods are difficult, inconvenient, or unsuitable. It is especially valuable for maintenance teams working on existing grounding networks where disconnecting the ground connection is not desirable.
Advantages of Dual Clamp Earth Resistance Testing
- No need to install an auxiliary ground electrode for the dual-clamp method
- No need to disconnect the grounding system from connected equipment
- Suitable for online grounding resistance measurements
- Convenient for field inspection and maintenance
- Useful for testing existing grounding networks
- Large clamp design supports practical field operation
FUZRR ES3002E Ground Resistance Measurement Methods
The ES3002E supports multiple measurement methods, allowing professionals to select the appropriate technique according to the grounding system and testing environment.
2-Wire Ground Resistance Measurement
The simple two-wire method provides a convenient approach for suitable grounding resistance testing applications where a basic measurement configuration is required.
3-Wire Ground Resistance Measurement
The three-wire method can be used for conventional grounding resistance measurement and is suitable for a wide range of electrical grounding inspection applications.
4-Wire Precision Ground Resistance Measurement
The four-wire method provides a precision measurement configuration and is useful when technicians require a more controlled grounding resistance test.
Selection Method
The ES3002E includes a selection method for grounding resistance measurement with a range of 0.00Ω to 3.000kΩ.
Dual Clamp Grounding Resistance Method
The dual-clamp method measures grounding resistance from 0.00Ω to 200Ω. This method is designed for online measurement without the need to install auxiliary ground rods.
Soil Resistivity Measurement
The FUZRR ES3002E Soil Resistivity Tester can measure soil resistivity from 0.00Ωm to 9999kΩm. Soil resistivity testing is important for evaluating soil conditions during grounding system design, installation, inspection, and maintenance.
The instrument supports an electrode spacing range of 0.1m to 100.0m, providing flexibility for different field testing requirements.
1000A AC Current Measurement
In addition to grounding measurements, the FUZRR ES3002E can measure AC current from 0.00A to 1000.0A. This additional function makes the instrument more versatile for electrical inspection, troubleshooting, and maintenance applications.
The AC current measurement resolution is 0.01mA, while the specified accuracy is ±2%rdg±50dgt.
DC Resistance, Ground Voltage & DC Voltage Measurement
The ES3002E is not limited to earth resistance testing. It can also measure DC resistance, voltage to ground, and DC voltage, providing several useful electrical measurement functions in a single instrument.
- DC Resistance: 0.000Ω to 200.00kΩ
- Voltage to Ground: 0.000V to 50.00V
- DC Voltage: 0.000V to 50.00V
FUZRR ES3002E Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Double Clamp Multi-Function Earth Resistance Tester |
| 2/3/4 Wire Grounding Resistance | 0.000Ω ~ 200.00kΩ |
| Grounding Resistance Accuracy | ±1.5%rdg±70dgt |
| Grounding Resistance Resolution | 0.001Ω |
| DC Resistance | 0.000Ω ~ 200.00kΩ |
| DC Resistance Accuracy | ±1.5%rdg±70dgt |
| DC Resistance Resolution | 0.001Ω |
| Selection Method Grounding Resistance | 0.00Ω ~ 3.000kΩ |
| Selection Method Accuracy | ±2%rdg±30dgt |
| Selection Method Resolution | 0.01Ω |
| Dual-Clamp Grounding Resistance | 0.00Ω ~ 200Ω |
| Dual-Clamp Accuracy | ±10%rdg±10dgt |
| Dual-Clamp Resolution | 0.01Ω |
| Soil Resistivity | 0.00Ωm ~ 9999kΩm |
| Soil Resistivity Resolution | 0.01Ωm |
| Voltage to Ground | 0.000V ~ 50.00V |
| Voltage to Ground Accuracy | ±1.5%rdg±50dgt |
| Voltage to Ground Resolution | 0.001V |
| DC Voltage | 0.000V ~ 50.00V |
| DC Voltage Accuracy | ±1.5%rdg±50dgt |
| DC Voltage Resolution | 0.001V |
| AC Current | 0.00A ~ 1000.0A |
| AC Current Accuracy | ±2%rdg±50dgt |
| AC Current Resolution | 0.01mA |
| Test Waveform | Sine wave |
| Test Frequency | 128Hz |
| Data Storage | 500 groups |
| Electrode Spacing | 0.1m ~ 100.0m |
| Power Supply | Built-in 11.1V lithium battery |
| Automatic Shut-Off | 15 minutes by default; customizable |
| Backlight | Controlled backlight |
| USB Interface | Yes |
| Base Condition | 23°C ± 5°C, below 75% RH |
| Instrument Weight | Approx. 1975g including battery |
| Current Clamp Weight | Approx. 940g, 2 bars |
| Test Cable Weight | Approx. 1300g |
| Ingress Protection | IP45 |
Applications of FUZRR ES3002E Earth Resistance Tester
The FUZRR ES3002E is suitable for professional electrical grounding inspection, maintenance, and measurement across a wide range of industries and infrastructure applications.
- Electrical grounding and earthing system testing
- Power distribution systems
- Electrical substations and installations
- Telecommunication grounding systems
- Transmission towers and iron tower grounding
- Factory grounding networks
- Lightning protection grounding systems
- Gas stations
- Oil field electrical installations
- Meteorological installations
- Computer rooms and equipment rooms
- Industrial electrical maintenance
- Grounding system inspection and troubleshooting
- Electrical engineering field testing
Why Choose FUZRR ES3002E Double Clamp Earth Tester?
The FUZRR ES3002E is designed for professionals who require a versatile grounding tester with both conventional and clamp-based measurement capabilities.
- Online Grounding Measurement: Dual-clamp technology allows grounding resistance testing without disconnecting the grounding system from equipment.
- No Auxiliary Ground Rod: The double-clamp method eliminates the need to install auxiliary ground electrodes for applicable online measurements.
- Multiple Test Methods: Supports 2-wire, 3-wire, 4-wire, selection, and dual-clamp methods.
- 1000A AC Current: Provides additional current measurement capability for electrical inspection and maintenance.
- Soil Resistivity Testing: Measures soil resistivity up to 9999kΩm.
- Large Data Storage: Stores up to 500 groups of measurement results.
- Field-Ready Design: Rechargeable lithium battery, backlight, color display, and IP45 protection support field use.
- Interference Reduction: Fast filtering technology helps minimize measurement interference.
FUZRR ES3002E for Professional Grounding Inspection
For technicians working on existing electrical installations, the ability to perform online earth resistance testing can make field inspection significantly more convenient. The ES3002E's double-clamp method allows suitable grounding systems to be tested without disconnecting the ground connection or installing auxiliary ground rods.
For conventional grounding measurements, the instrument also supports two-wire, three-wire, four-wire, and selection methods, giving professionals flexibility to select the appropriate testing technique for their application.
FUZRR ES3002E Earth Resistance Tester in Pakistan
If you are searching for a double clamp earth resistance tester in Pakistan, ground resistance tester in Pakistan, or soil resistivity tester in Pakistan, the FUZRR ES3002E is designed for professional electrical testing applications.
Its combination of dual-clamp grounding resistance measurement, four-wire testing, soil resistivity measurement, 1000A AC current measurement, DC resistance, voltage testing, and data storage makes it a versatile choice for electrical engineers, technicians, contractors, industries, and maintenance teams.
Buy FUZRR ES3002E Double Clamp Earth Resistance Tester in Pakistan
Looking to buy FUZRR ES3002E Double Clamp Multi-Function Earth Resistance Tester in Pakistan? Test Instruments Pakistan provides professional electrical testing and measurement instruments for engineers, technicians, contractors, industrial facilities, and technical professionals.
Contact Test Instruments Pakistan for the latest FUZRR ES3002E price in Pakistan, availability, quotation, and delivery information.
Frequently Asked Questions About FUZRR ES3002E
What is the FUZRR ES3002E used for?
The FUZRR ES3002E is used to measure grounding resistance, earth resistance, soil resistivity, DC resistance, ground voltage, DC voltage, and AC current. It is designed for professional electrical grounding and inspection applications.
What is the main advantage of the ES3002E double clamp method?
The main advantage is that the dual-clamp method allows suitable grounding systems to be measured without installing an auxiliary ground rod and without disconnecting the grounding system from the equipment.
Can the ES3002E measure AC current?
Yes. The FUZRR ES3002E measures AC current from 0.00A to 1000.0A.
What is the soil resistivity range of ES3002E?
The soil resistivity measurement range is 0.00Ωm to 9999kΩm.
Does the ES3002E support four-wire earth resistance testing?
Yes. The instrument supports 2-wire, 3-wire, and precision 4-wire grounding resistance measurement, along with selection and dual-clamp methods.
What is the dual-clamp grounding resistance range?
The dual-clamp grounding resistance measurement range is 0.00Ω to 200Ω.
How much data can the ES3002E store?
The FUZRR ES3002E can store up to 500 groups of measurement data.
Does FUZRR ES3002E have USB connectivity?
Yes. The ES3002E includes a USB interface for reading and saving measurement records.
What is the electrode spacing range of ES3002E?
The supported electrode spacing range is 0.1m to 100.0m.
Where can the FUZRR ES3002E be used?
The ES3002E can be used in telecommunications, power systems, meteorological installations, equipment rooms, oil fields, power distribution lines, transmission towers, gas stations, factory grounding networks, lightning protection systems, and industrial electrical maintenance.
